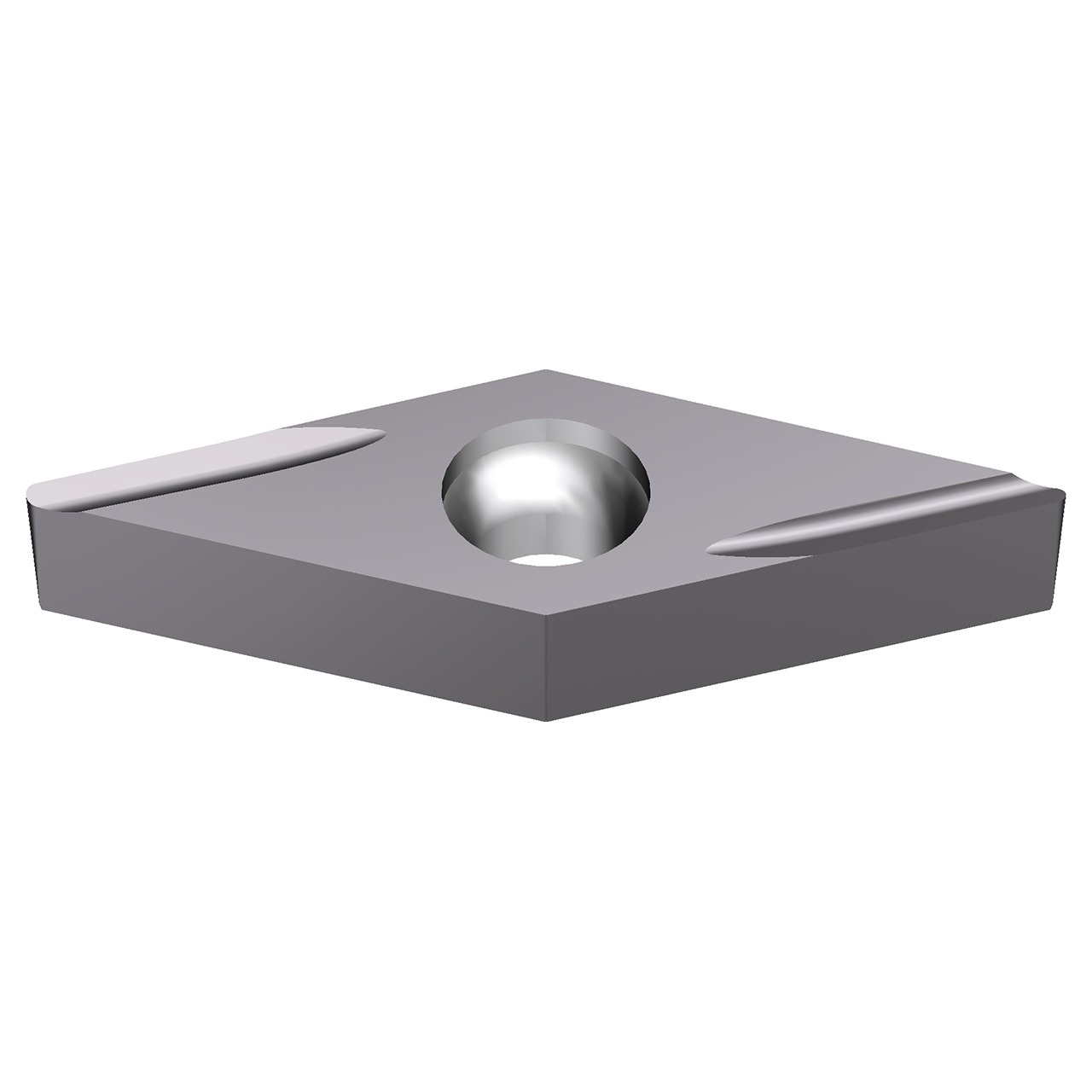

| EDP Number | 1LR4552 |
| Product Code-ANSI | VPET63.007LFX-AC1030U |
| Product Code-ISO | VPET0802018L-FX |
| Manufacturer Grade Identification | AC1030U |
| Series | AC1030U |
| Cutting Edge Length (Decimal Inch) | 0.3268" |
| Cutting Edge Length (mm) | 8.30mm |
| Nose Radius (Decimal Inch) | 0.0709" |
| Nose Radius (mm) | 1.80mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.1874" |
| Inscribed Circle Diameter (mm) | 4.76mm |
| Hole Diameter (mm) | 2.40mm |
| Insert Thickness (Decimal Inch) | 0.0937" |
| Insert Thickness (mm) | 2.38mm |
| Relief Angle | 11 Degree |
| Rake Angle | Positive |
| Insert Material | Carbide |
| Tolerance Class | E |
| Chip Breaker | LFX |
| Corner Angle | 35 |
| Insert Style | VPET |
| Secondary Workpiece Material | Steel, Stainless Steel, Small Machining |
| Primary Workpiece Material | Steel, Stainless Steel, Small Machining |
| Coating | Absotech |
| Coating Process | PVD |
| Standard Designation of the Grade, Main Application | P10, M10 |
| Insert Holding Method | Screw-On |
