Product Specifications

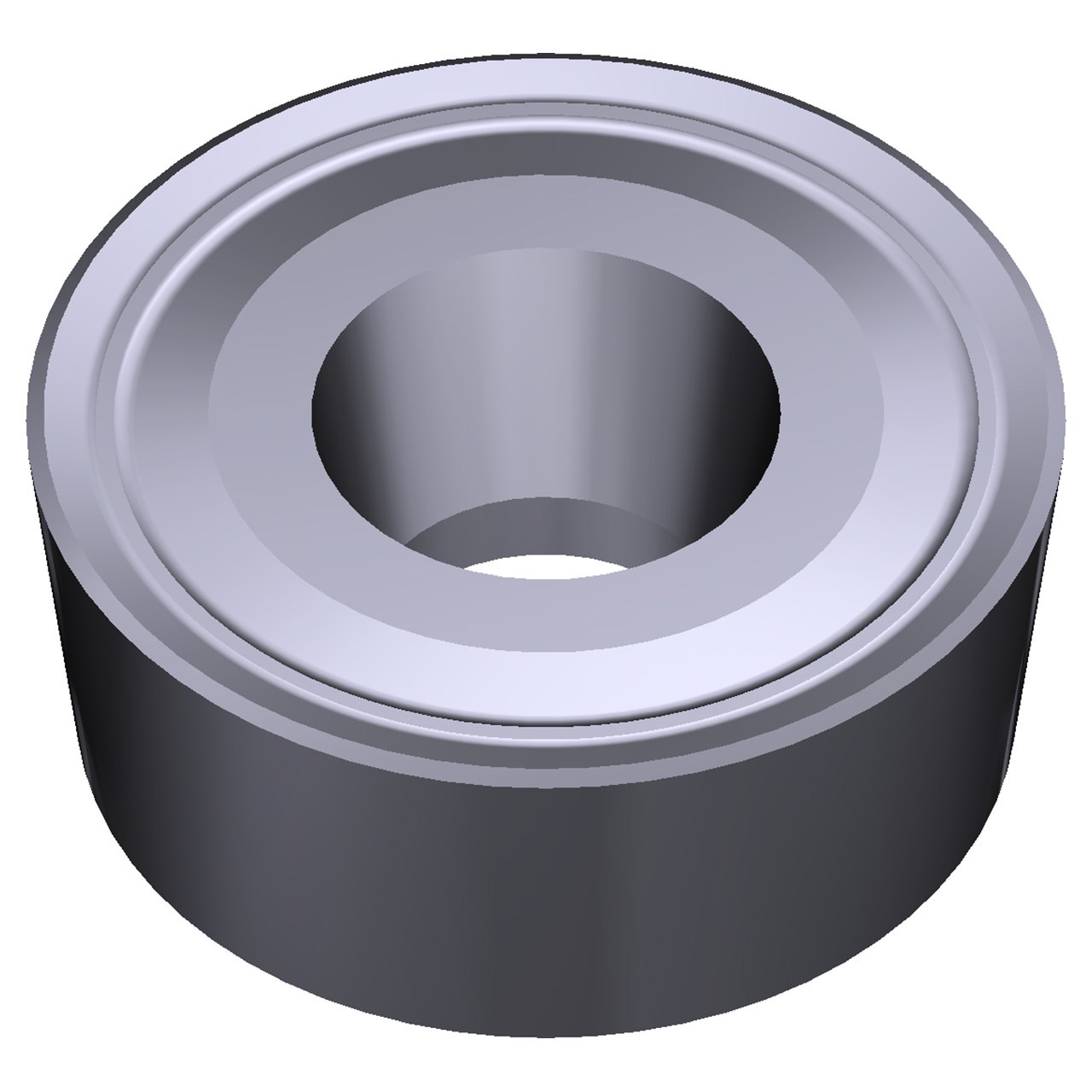

| EDP Number | 19W2313 |
| Product Code-ANSI | RCMX200600-AC5005S |
| Product Code-ISO | RCMX2006M0N-RP |
| Manufacturer Grade Identification | AC5005S |
| Series | AC5000S |
| Cutting Edge Length (Decimal Inch) | 0.7874" |
| Cutting Edge Length (mm) | 20.00mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.7874" |
| Inscribed Circle Diameter (mm) | 20.00mm |
| Hole Diameter (mm) | 6.50mm |
| Insert Thickness (Decimal Inch) | 0.2500" |
| Insert Thickness (mm) | 6.35mm |
| Relief Angle | 7 Degree |
| Rake Angle | Positive |
| Insert Material | Carbide |
| Tolerance Class | M |
| Chip Breaker | ERP |
| Insert Style | RCMX |
| Secondary Workpiece Material | Heat Resistant Alloy |
| Primary Workpiece Material | Heat Resistant Alloy |
| Coating | Absotech |
| Coating Process | PVD |
| Standard Designation of the Grade, Main Application | S05 |
| Insert Holding Method | Screw-On |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Insert Style:
RCMX
Insert Size:
200600
Material:
Carbide
Length (Inch):
25/32"
Length (Decimal Inch):
0.7874"
Length (mm):
20.00mm
Inscribed Circle (Inch):
25/32"
Inscribed Circle (Decimal Inch):
0.7874"
Inscribed Circle (mm):
20.00mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
Manufacturer's Grade:
AC5005S
interval quantity:
10
Ships:
From California in 1-2 Days
