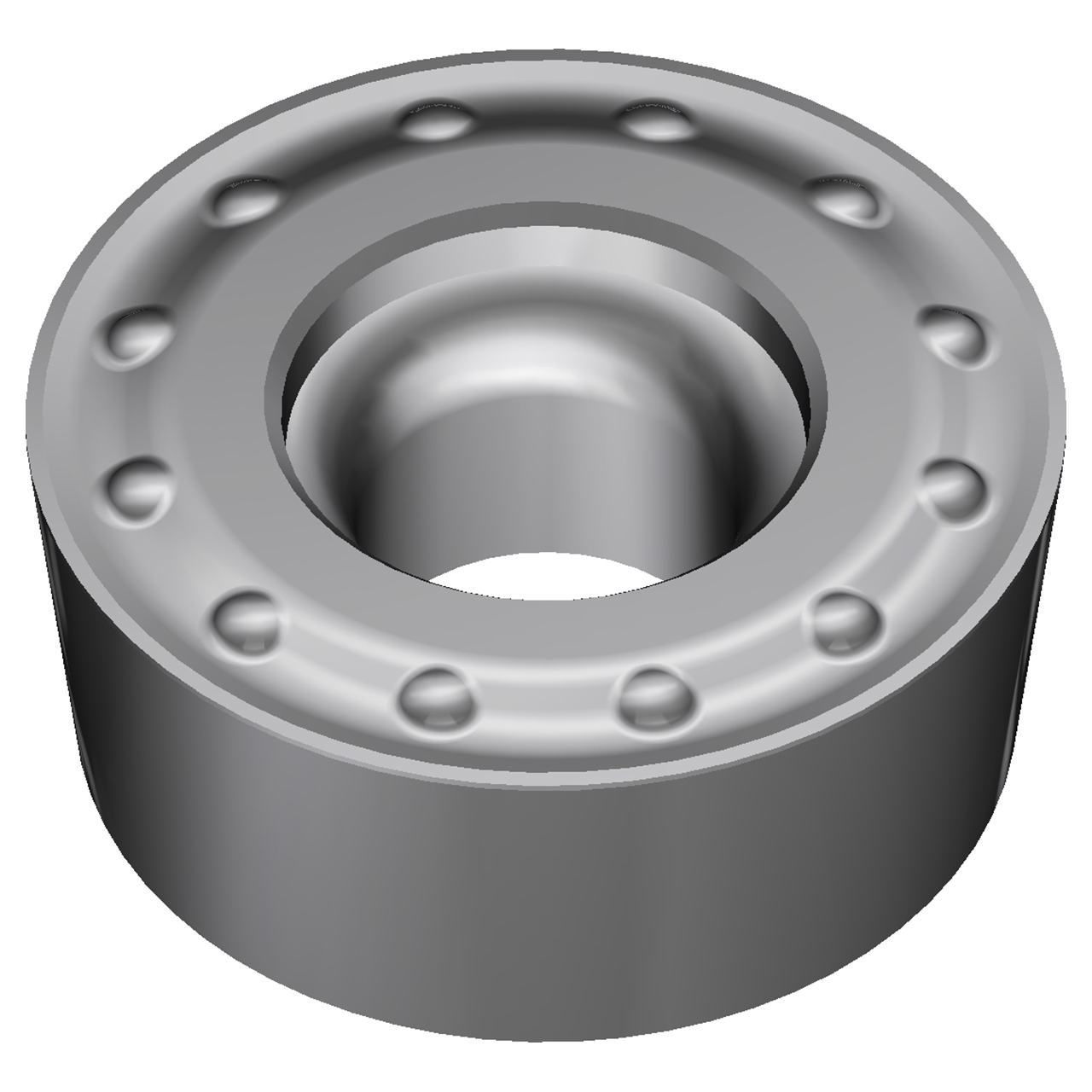

| EDP Number | 19T3BXT |
| Product Code-ANSI | RCMT200600-AC8035P |
| Product Code-ISO | RCMT2006M0N-RX |
| Manufacturer Grade Identification | AC8035P |
| Series | AC8000P |
| Inscribed Circle Diameter (Decimal Inch) | 0.7874" |
| Inscribed Circle Diameter (mm) | 20.00mm |
| Hole Diameter (mm) | 6.50mm |
| Insert Thickness (Decimal Inch) | 0.2500" |
| Insert Thickness (mm) | 6.35mm |
| Relief Angle | 7 Degree |
| Rake Angle | Positive |
| Insert Material | Carbide |
| Tolerance Class | M |
| Chip Breaker | ERX |
| Insert Style | RCMT |
| Primary Workpiece Material | Steel |
| Coating | Absotech |
| Coating Process | CVD |
| Standard Designation of the Grade, Main Application | P35, P25, P40 |
| Insert Holding Method | Screw-On |
