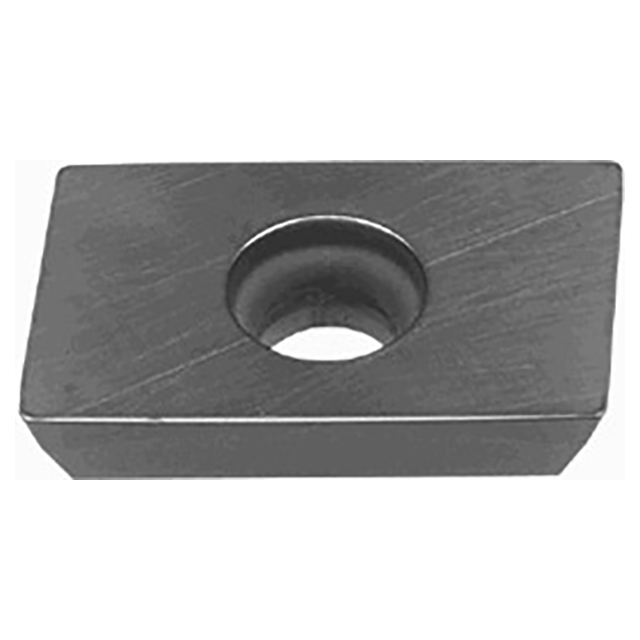

High precision insert for shoulder milling.
Product Specifications
| # MFG | 6800889 |
| Cutting Edge Effective Length (mm) | 16mm |
| Corner Radius (mm) | 0.4mm |
| Depth of Cut Maximum (mm) | 14mm |
| Insert Thickness (mm) | 3.97mm |
| Insert Width (mm) | 12mm |
| Number of Cutting Edges | 2 |
| Application | Shoulder Milling |
| Body Material | Carbide |
| Grade | TH10 |
| Cutting Edge Material | Carbide |
| Applicable Material | Cast Iron, Hard Materials, Non Ferrous Metals, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
TH10
Width (Inch):
15/32"
Width (Decimal Inch):
0.4724"
Width (mm):
12.00mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1562"
Thickness (mm):
3.97mm
interval quantity:
10
