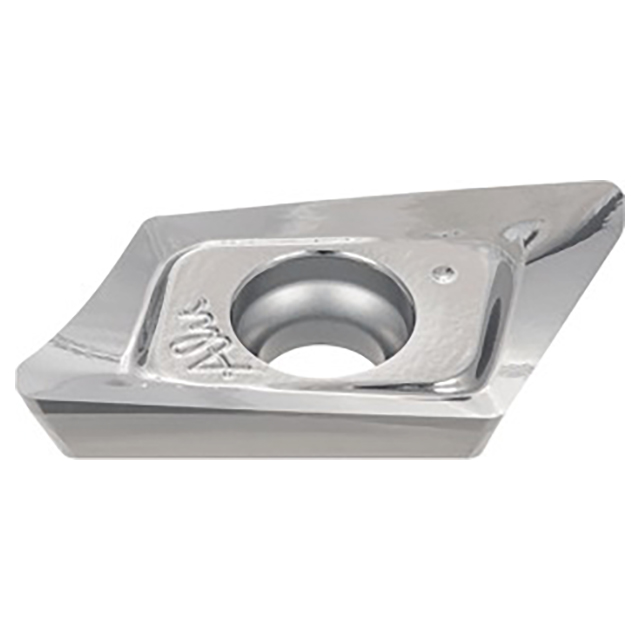

Insert with "AJ" chipbreaker for aluminum machining.
| # MFG | 5614306 |
| Cutting Edge Effective Length (Inch) | 0.722" |
| Corner Radius (Inch) | 0.1969" |
| Depth of Cut Maximum (Inch) | 0.512" |
| Insert Thickness (Inch) | 0.213" |
| Insert Width (Inch) | 0.441" |
| Maximum Feed per Tooth | 0.0138"/tooth |
| Minimum Feed per Tooth | 0.0027"/tooth |
| Number of Cutting Edges | 2 |
| Wiper Edge Length | 0.016" |
| Application | Shoulder Milling |
| Body Material | Carbide |
| Grade | TH10 |
| Cutting Edge Material | Carbide |
| Applicable Material | Cast Iron, Hard Materials, Non Ferrous Metals, Hi Temp Alloys |
