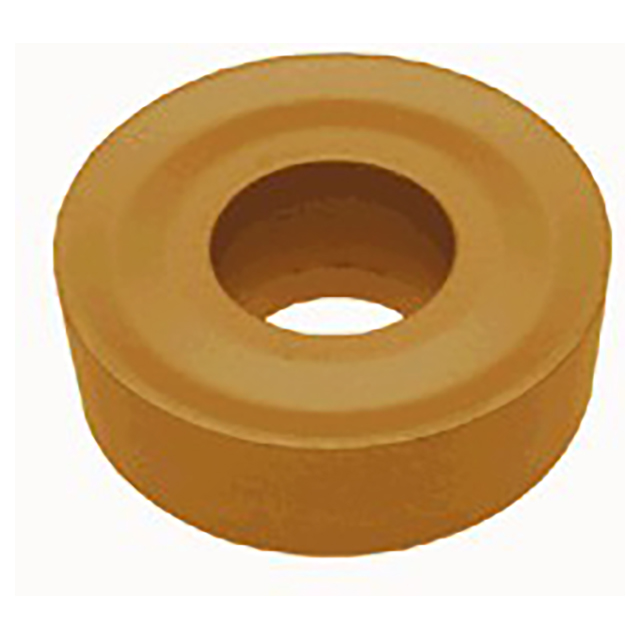

Positive 7 degree relief angle, M class, round insert, for heavy cutting.
Product Specifications
| # MFG | 6805855 |
| Cutting Edge Length (Inch) | 0.787" |
| Maximum Depth of Cut (Inch) | 0.1181" |
| Fixing Hole Diameter (Inch) | 0.256" |
| Inscribed Circle Diameter (Inch) | 0.787" |
| Insert Thickness (Inch) | 1/4" |
| Maximum Turning Feed (Inch) | 0.0472"/rev |
| Minimum Depth of Cut (Inch) | 0.059" |
| Minimum Turning Feed (Inch) | 0.0236"/rev |
| Cutting Edge Material | Carbide |
| Grade | TH10 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Cast Iron, Hard Materials, Non Ferrous Metals, Hi Temp Alloys |
| Chip Breaker Type | 61 |
| Major Clearance Angle | 7 Degree |
| Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Neck Diameter (mm):
7.60mm
Corner Radius (Decimal Inch):
0.3937"
Finish/Coating:
Uncoated
Body Material:
Carbide
Grade:
TH10
Cutting Direction:
Neutral
Maximum Depth of Cut (Decimal Inch):
0.1181"
interval quantity:
10
