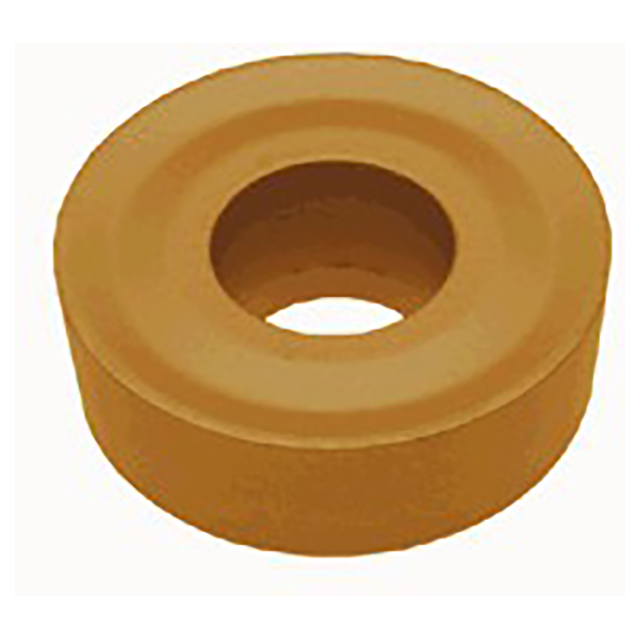

Positive 7 degree relief angle, M class, round insert, for heavy cutting.
| # MFG | 6805844 |
| Cutting Edge Length (Inch) | 0.394" |
| Maximum Depth of Cut (Inch) | 0.0787" |
| Fixing Hole Diameter (Inch) | 0.142" |
| Inscribed Circle Diameter (Inch) | 0.394" |
| Insert Thickness (Inch) | 1/8" |
| Maximum Turning Feed (Inch) | 0.0393"/rev |
| Minimum Depth of Cut (Inch) | 0.0196" |
| Minimum Turning Feed (Inch) | 0.0196"/rev |
| Cutting Edge Material | Carbide |
| Grade | TH10 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Cast Iron, Hard Materials, Non Ferrous Metals, Hi Temp Alloys |
| Chip Breaker Type | 61 |
| Major Clearance Angle | 7 Degree |
| Body Material | Carbide |
