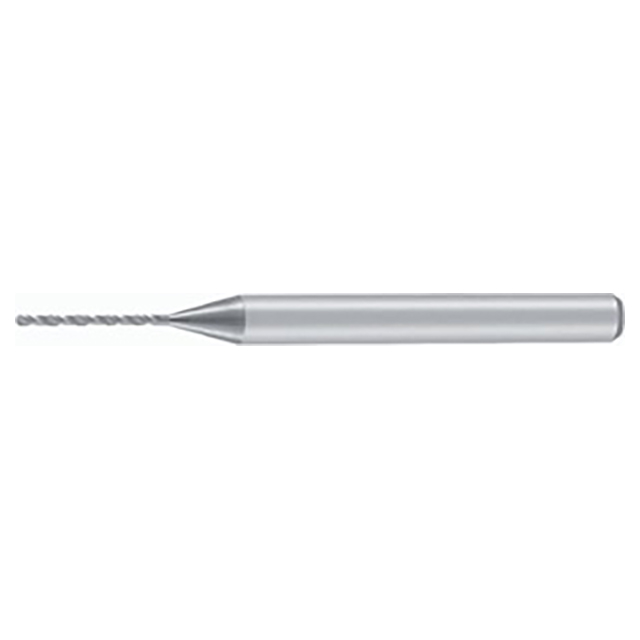

Small diameter, solid carbide drill, L/D (ULDR) =5-15.
Product Specifications
| # MFG | 6844083 |
| Drill Bit Size/Cutting Diameter (mm) | 2.6mm |
| Length Chip Flute (mm) | 20.1mm |
| Overall Length (mm) | 55mm |
| Point Length (mm) | 0.47mm |
| Shank Length (mm) | 33.6mm |
| Usable Length (mm) | 13mm |
| Connection Diameter Machine Side (mm) | 3mm |
| Point Angle (Degree) | 140 Degree |
| Shank Type | Round |
| Grade | YH180 |
| Body Material | Carbide |
| Coolant Supply Property | External |
| Cutting Edge Material | Carbide |
| Coating | TiAlN |
| Tool Type | Solid Carbide Drills |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Drill Bit Size (Inch):
7/64"
Drill Bit Size (Decimal Inch):
0.1000"
Drill Bit Size (mm):
2.60mm
Drill Point Angle:
140 Degree
Overall Length (Inch):
2-11/64"
Overall Length (Decimal Inch):
2.1700"
Overall Length (mm):
55.00mm
Finish/Coating:
TiAlN
interval quantity:
1
