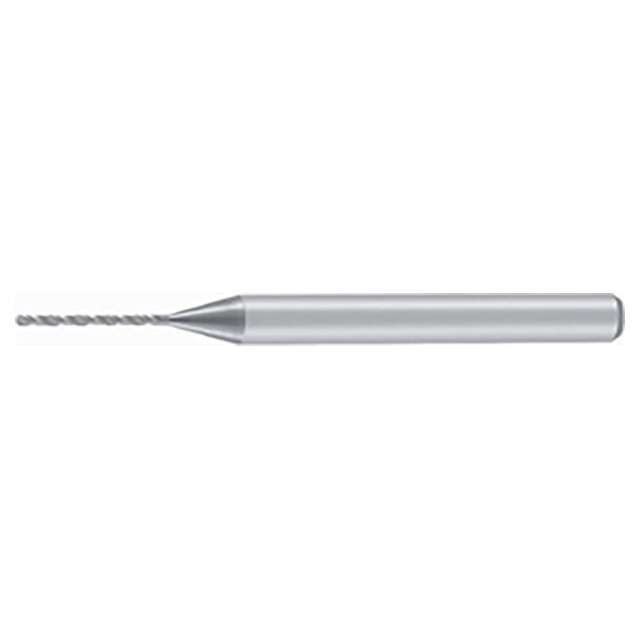

Small diameter, solid carbide drill, L/D (ULDR) =5-15.
| # MFG | 6844077 |
| Drill Bit Size/Cutting Diameter (mm) | 2mm |
| Length Chip Flute (mm) | 15.3mm |
| Overall Length (mm) | 45mm |
| Point Length (mm) | 0.36mm |
| Shank Length (mm) | 27.2mm |
| Usable Length (mm) | 10mm |
| Connection Diameter Machine Side (mm) | 3mm |
| Point Angle (Degree) | 140 Degree |
| Shank Type | Round |
| Grade | YH180 |
| Body Material | Carbide |
| Coolant Supply Property | External |
| Cutting Edge Material | Carbide |
| Coating | TiAlN |
| Tool Type | Solid Carbide Drills |
| Application | General Drilling |
