Features:
Product Specifications
| EDP Number | BGD47H |
| Thread Diameter (Inch) | 2-1/2" |
| Diameter (Decimal Inch) | 2.5000" |
| Diameter (mm) | 63.50mm |
| Thread Pitch (TPI) | 4 TPI |
| Overall Length (Decimal Inch) | 12.4016" |
| Overall Length (mm) | 315.00mm |
| Thread Length (Decimal Inch) | 1.2992" |
| Thread Length (mm) | 33.00mm |
| Square Length (Decimal Inch) | 1.5750" |
| Square Length (mm) | 40.01mm |
| Shank Diameter (Decimal Inch) | 2.1000" |
| Shank Diameter (mm) | 53.34mm |
| Square Size (Decimal Inch) | 1.5750" |
| Square Size (mm) | 40.01mm |
| Neck Diameter (Decimal Inch) | 2.0800" |
| Neck Diameter (mm) | 52.83mm |
| Drill Size (Decimal Inch) | 2.2727" |
| Drill Size (mm) | 57.73mm |
| Useable Length (Decimal Inch) | 4.9210" |
| Useable Length (mm) | 124.99mm |
| Series | BG |
| Number of Flutes | 6 |
| Thread Series | UNC |
| Thread Class | 2B |
| Chamfer Length | 2P-3P |
| Tap Type | SPFL |
| Chamfer Type | Modified Bottoming |
| Coating | Hardslick |
| Material | HSSE-V3 |
| Blank Standard | DIN/ANSI |
| Helix Angle (Degree) | 40 Degree |
| Coolant Through | No |
| Trade Name | Oil Field Taps |
| Tap Type | Spiral Flute |

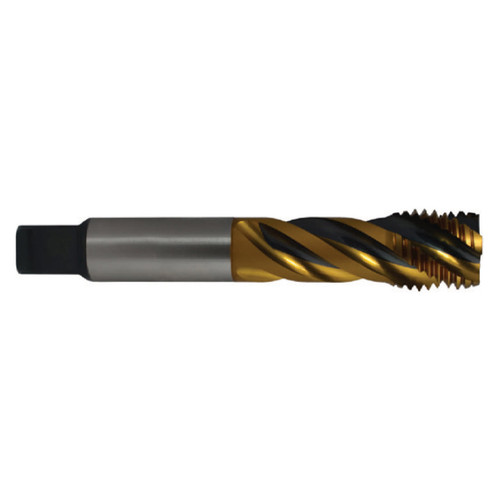

| Product Type | Spiral Flute Modified Bottom Tap |
