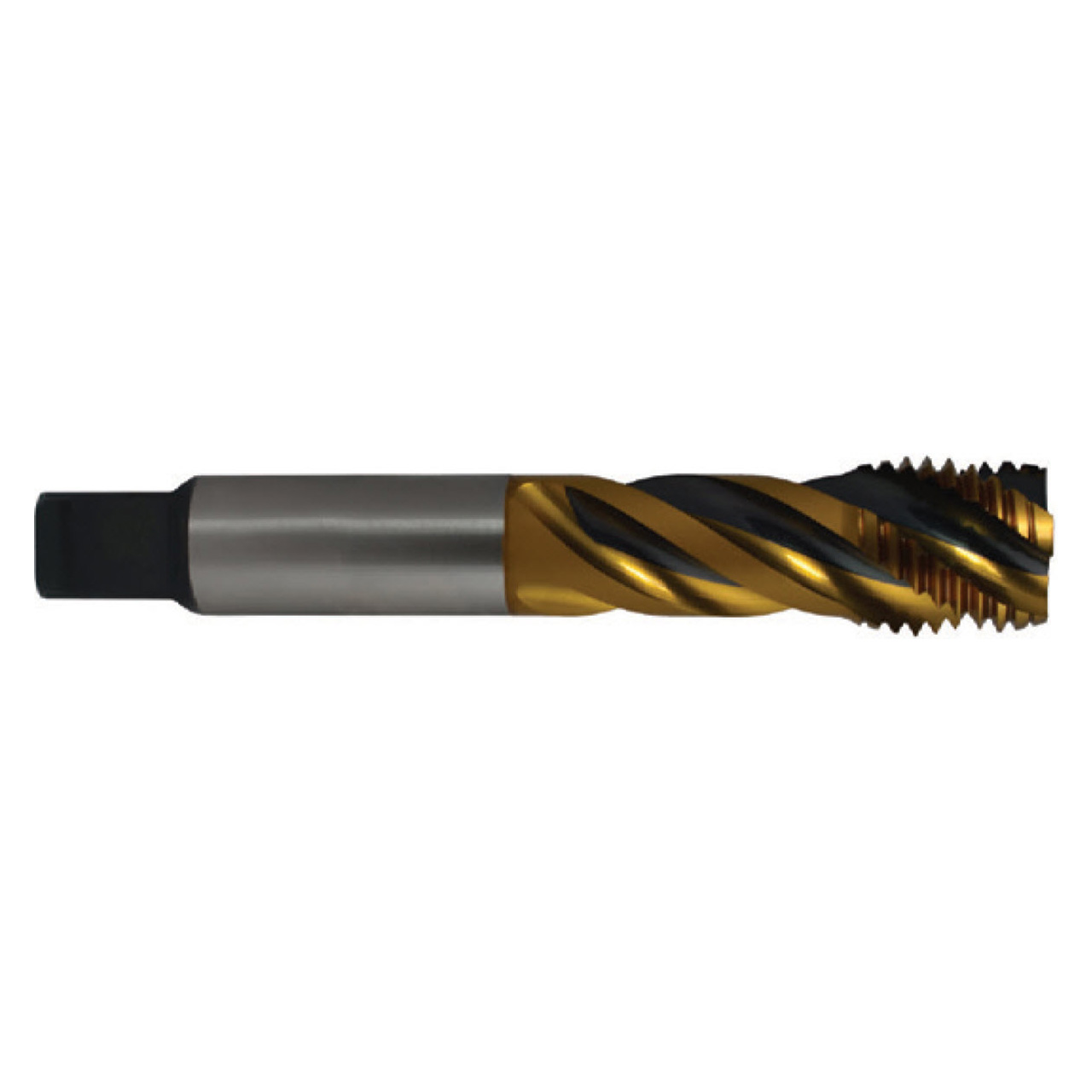

Features:
| Manufacturer Part Number | BGD45H |
| Thread Diameter (Inch) | 2-1/4" |
| Diameter (Decimal Inch) | 2.2500" |
| Diameter (mm) | 57.15mm |
| Thread Pitch (TPI) | 4-1/2" |
| Overall Length (Decimal Inch) | 11.0236" |
| Overall Length (mm) | 280.00mm |
| Thread Length (Decimal Inch) | 2.1654" |
| Thread Length (mm) | 55.00mm |
| Square Length (Decimal Inch) | 1.4200" |
| Square Length (mm) | 36.07mm |
| Shank Diameter (Decimal Inch) | 1.8940" |
| Shank Diameter (mm) | 48.11mm |
| Square Size (Decimal Inch) | 1.4200" |
| Square Size (mm) | 36.07mm |
| Neck Diameter (Decimal Inch) | 1.8740" |
| Neck Diameter (mm) | 47.60mm |
| Drill Size (Decimal Inch) | 2.0479" |
| Drill Size (mm) | 52.02mm |
| Useable Length (Decimal Inch) | 5.1180" |
| Useable Length (mm) | 130.00mm |
| Series | BG |
| Number of Flutes | 6 |
| Thread Series | UNC |
| Thread Class | 2B |
| Chamfer Length | 2P-3P |
| Tap Type | SPFL |
| Chamfer Type | Modified Bottoming |
| Coating | Hardslick |
| Material | HSSE-V3 |
| Blank Standard | DIN/ANSI |
| Helix Angle (Degree) | 40 Degree |
| Coolant Through | No |
| Trade Name | Oil Field Taps |
| Tap Type | Spiral Flute |
| Product Type | Spiral Flute Modified Bottom Tap |
