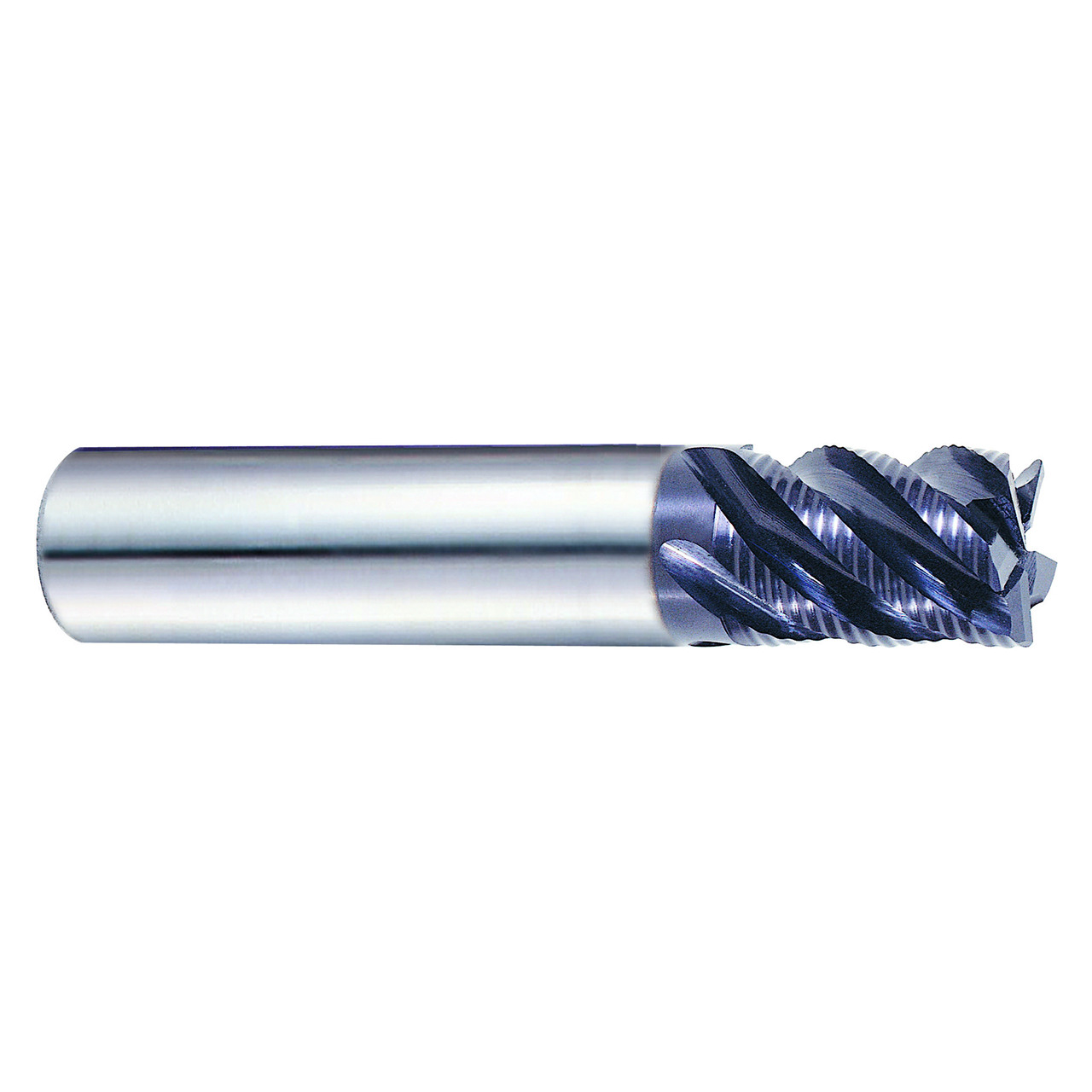

Product Specifications
| EDP Number | EH917200 |
| Diameter (Decimal Inch) | 0.7874" |
| Diameter (Inch) | 37/47" |
| Diameter (mm) | 20.00mm |
| Shank Diameter (Decimal Inch) | 0.7874" |
| Shank Diameter (Inch) | 37/47" |
| Shank Diameter (mm) | 20.00mm |
| Length of Cut (Decimal Inch) | 1.0236" |
| Length of Cut (Inch) | 1-2/8" |
| Length of Cut (mm) | 26.00mm |
| Overall Length (Decimal Inch) | 3.6220" |
| Overall Length (Inch) | 3-28/45" |
| Overall Length (mm) | 92.00mm |
| Number of Flutes | 6 |
| Series | EH917 |
| Helix Angle (Degree) | 45 Degree |
| Coating | TiAlN |
| Material | Carbide |
| Shank Style | Plain |
| Cut Type | Center Cut |
| Length Type | Short |
| Application | P,M,S |
| Cutting Direction | Right Hand |
| Product Type | Roughing End Mill |
