Product Specifications

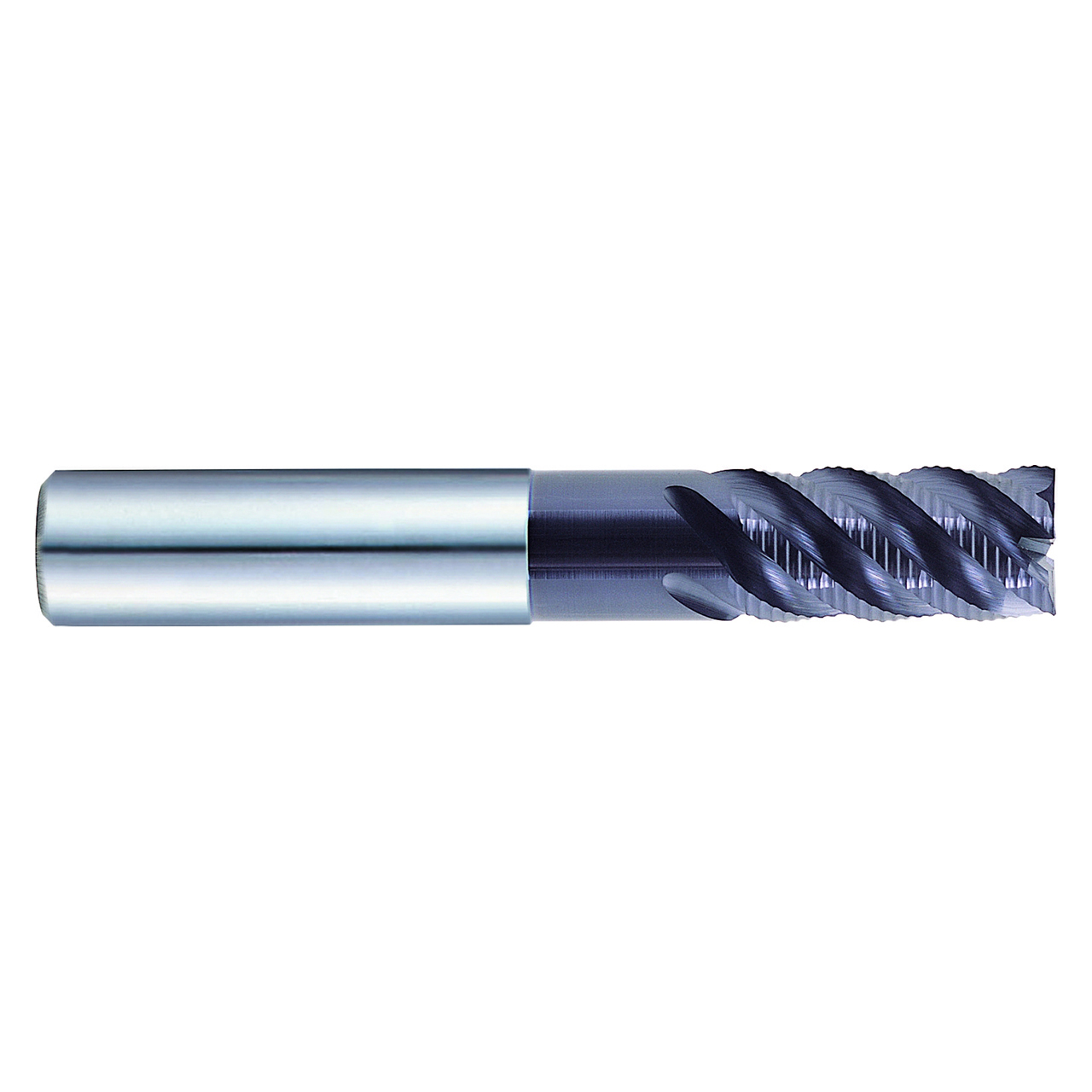

| Manufacturer Part Number | EH921200 |
| Diameter (Decimal Inch) | 0.7874" |
| Diameter (Inch) | 37/47" |
| Diameter (mm) | 20.00mm |
| Shank Diameter (Decimal Inch) | 0.7874" |
| Shank Diameter (Inch) | 37/47" |
| Shank Diameter (mm) | 20.00mm |
| Length of Cut (Decimal Inch) | 1.4961" |
| Length of Cut (Inch) | 1-1/8" |
| Length of Cut (mm) | 38.00mm |
| Length Below Shank (Decimal Inch) | 2.3228" |
| Length Below Shank (Inch) | 2-31/96" |
| Length Below Shank (mm) | 59.00mm |
| Overall Length (Decimal Inch) | 4.3307" |
| Overall Length (Inch) | 4-1/3" |
| Overall Length (mm) | 110.00mm |
| Neck Diameter (Decimal Inch) | 0.7559" |
| Neck Diameter (Inch) | 65/86" |
| Neck Diameter (mm) | 19.20mm |
| Number of Flutes | 6 |
| Series | EH921 |
| Helix Angle (Degree) | 45 Degree |
| Coating | TiAlN |
| Material | Carbide |
| Shank Style | Plain |
| Cut Type | Center Cut |
| Length Type | Long |
| Application | P,M,S |
| Cutting Direction | Right Hand |
| Product Type | Roughing End Mill |
