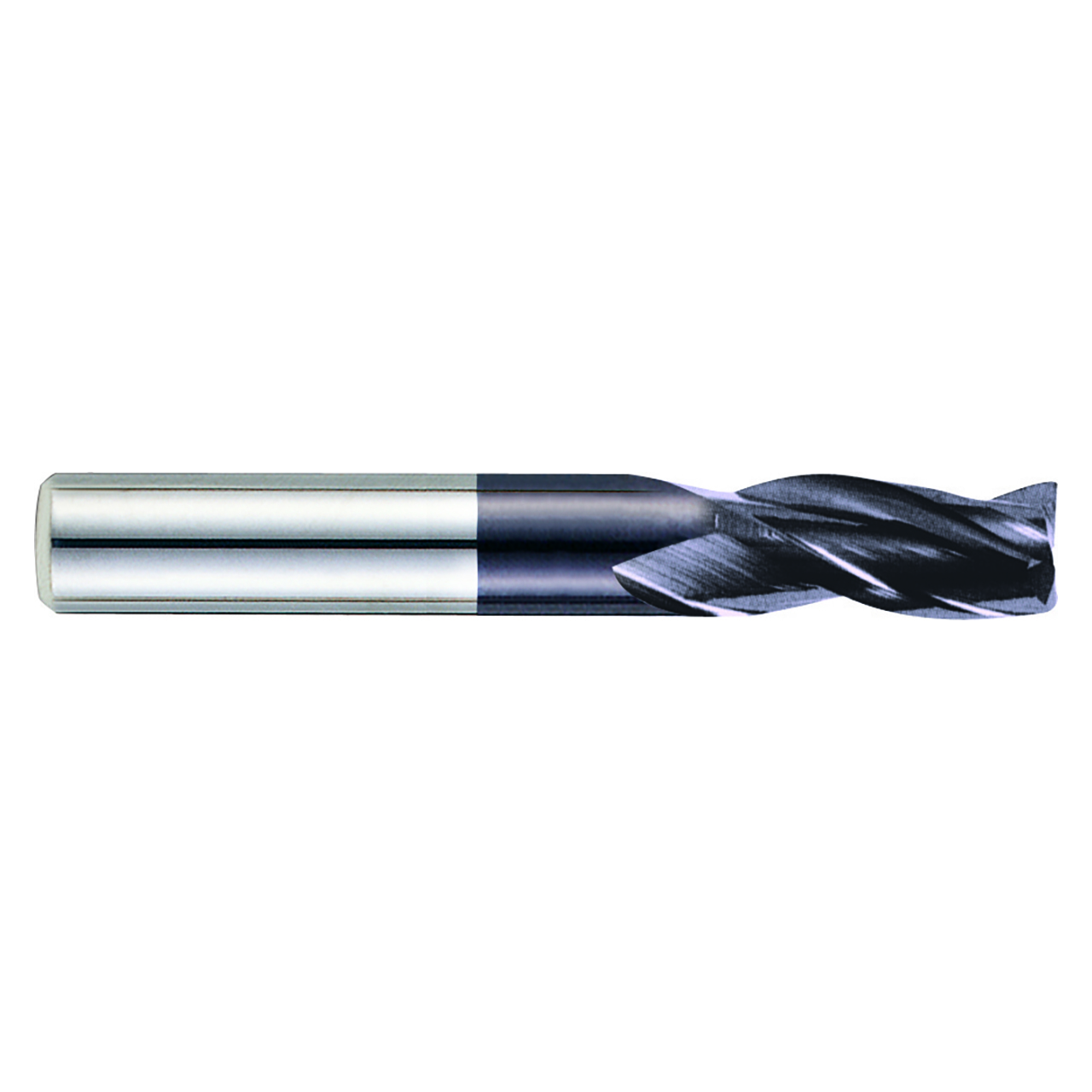

Product Specifications
| EDP Number | EM895140 |
| Diameter (Decimal Inch) | 0.5500" |
| Diameter (Inch) | 43/78" |
| Diameter (mm) | 14.00mm |
| Shank Diameter (Decimal Inch) | 0.5512" |
| Shank Diameter (Inch) | 43/78" |
| Shank Diameter (mm) | 14.00mm |
| Length of Cut (Decimal Inch) | 0.9843" |
| Length of Cut (Inch) | 62/63" |
| Length of Cut (mm) | 25.00mm |
| Overall Length (Decimal Inch) | 2.9528" |
| Overall Length (mm) | 75.00mm |
| Overall Length (Inch) | 2-20/21" |
| Number of Flutes | 3 |
| Series | EM895 |
| Helix Angle (Degree) | 38 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Short |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |
| Produce Type | Square End Mill |
