Product Specifications
| EDP Number | Y141H1450 |
| Diameter (Decimal Inch) | 0.5709" |
| Diameter (Inch) | 4/7" |
| Diameter (mm) | 14.50mm |
| Thickness (Decimal Inch) | 0.2160" |
| Thickness (Inch) | 19/88" |
| Thickness (mm) | 5.49mm |
| Insert Height (Decimal Inch) | 0.5680" |
| Insert Height (Inch) | 46/81" |
| Insert Height (mm) | 14.43mm |
| Point Length (Decimal Inch) | 0.1039" |
| Point Length (mm) | 2.64mm |
| Series | Y141H |
| Point Angle (Degree) | 140 Degree |
| Holder Type | S14 |
| Coating | H-Coated |
| Material | Carbide |
| Material Grade | Micro Grain |
| Application | P,K |
| Trade Name | YG I-One Drill Inserts |

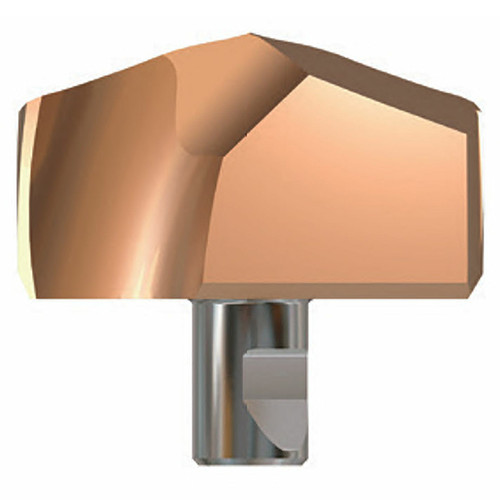

| Product Type | Replaceable Drill Tip |
