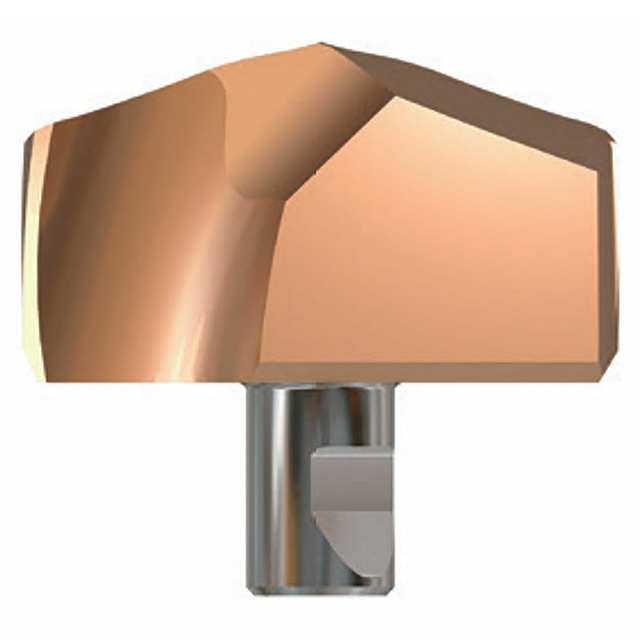

YG1 Y141H1410 | S14 Seat Size x 0.555" Diameter x 0.216" Thickness x 0.568" Height x 140 Degree Point Angle H-Coated Carbide Y141H Replaceable Drill Tip

$120.35 $81.84
(You save $38.51)
Brand:
YG1
Diameter (Decimal Inch):
0.5551"
Diameter (mm):
14.10mm
Included Angle:
140 Degree
Material:
Carbide
Series:
Y141H
Finish/Coating:
H-Coated
Insert Seat Size:
S14
interval quantity:
1
SKU:
10254289
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part NumberY141H1410
Diameter (Decimal Inch)0.5551"
Diameter (Inch)5/9"
Diameter (mm)14.10mm
Thickness (Decimal Inch)0.2160"
Thickness (Inch)19/88"
Thickness (mm)5.49mm
Insert Height (Decimal Inch)0.5680"
Insert Height (Inch)46/81"
Insert Height (mm)14.43mm
Point Length (Decimal Inch)0.1010"
Point Length (mm)2.57mm
SeriesY141H
Point Angle (Degree)140 Degree
Holder TypeS14
CoatingH-Coated
MaterialCarbide
Material GradeMicro Grain
ApplicationP,K
Trade NameYG I-One Drill Inserts
Product TypeReplaceable Drill Tip

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
