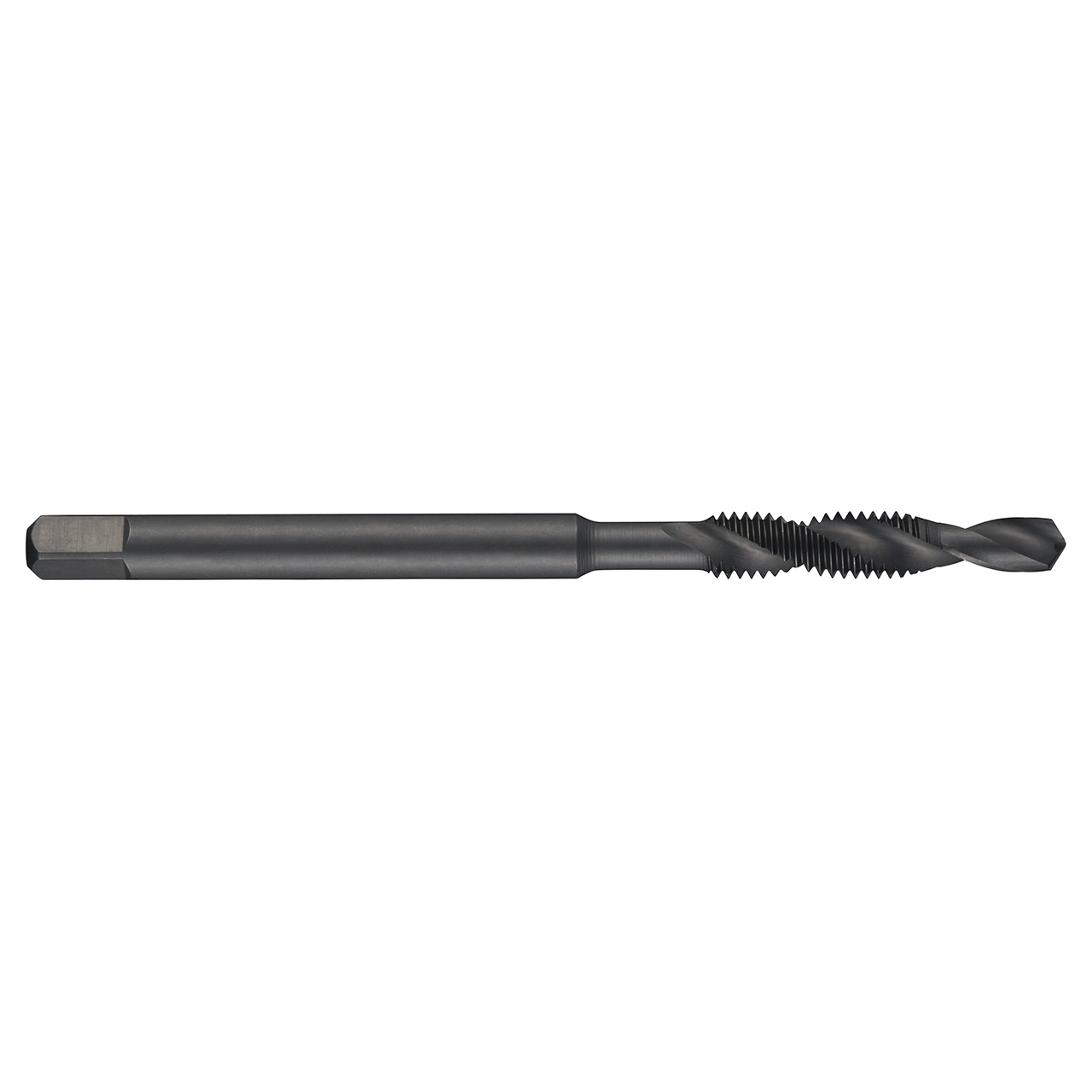

Combination drill-tap with a 30° spiral flute, for ISO-Metric thread M8 with 1.25mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 8.0mm shank and 6.3mm square drive, HSS with steam tempered surface finish and 30° helix angle for 1.5xD through hole threading in free machining steel.
Product Specifications
| Connection Diameter (Inch) | 0.315" |
| Overall Length (Inch) | 3.7795" |
| Clamping Width (mm) | 6.3mm |
| Thread Diameter (mm) | 6.8mm |
| No of Flutes | 2 |
| Flute Helix Angle | 30 |
| Thread Pitch (mm) | 1.25mm |
| Clamping Length | 9 |
| Thread Diameter Size | 8 |
| Threading Length (mm) | 21mm |
| Material Code | HSS |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black |
| Thread Form | M-Metric coarse |
