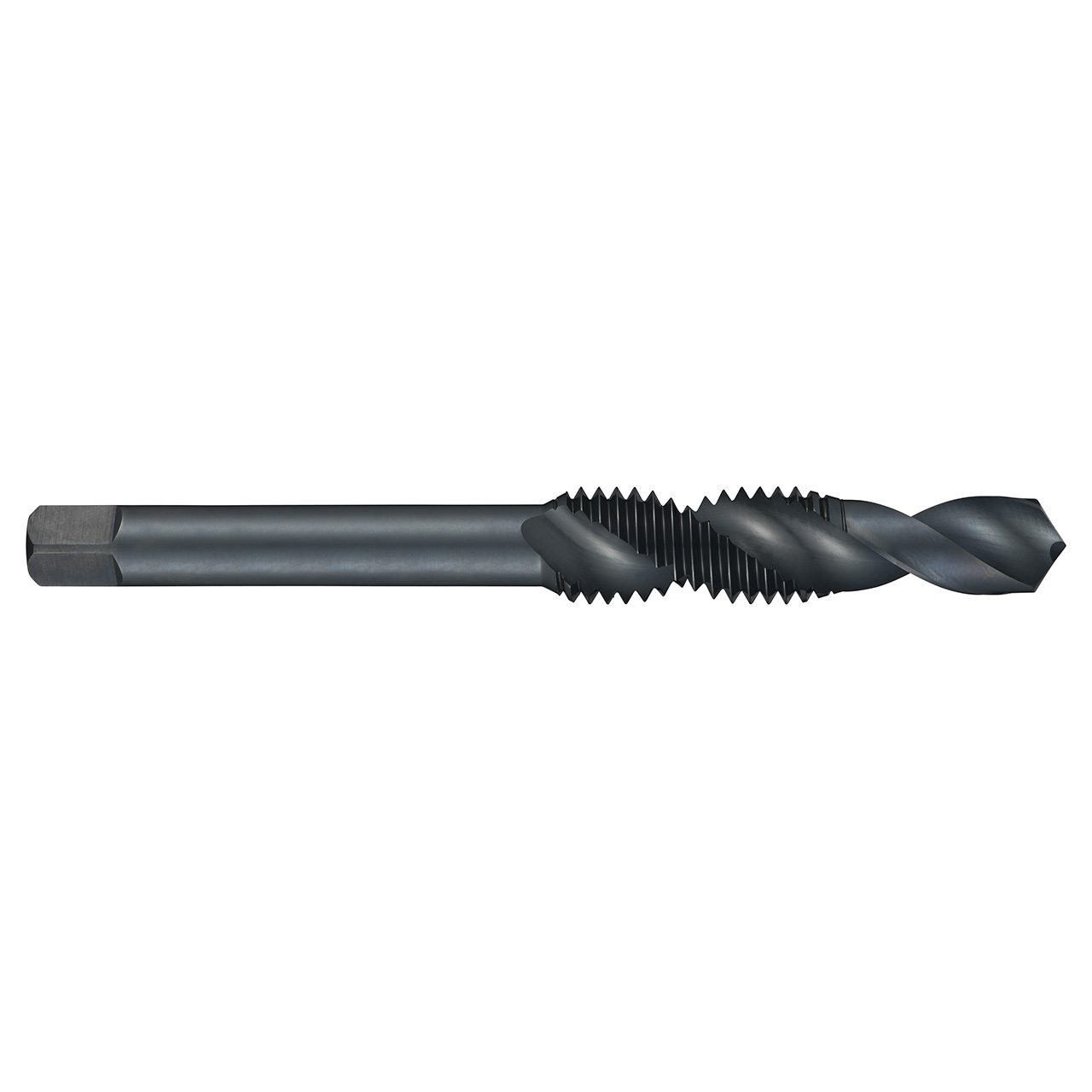

Dormer E6515/16 | 0.315" Diameter x 3.7008" OAL 2 Flute Steam Tempered Coated Combination Drill & Tap

$24.48
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023996
Weight:
1.19 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Combination drill-tap with a 30° spiral flute, for Unified National Coarse thread UNC 5/16" with 18 TPI and 2B class of fit, dimensions according to DORMER-DIN standard with 8.0mm shank and 6.3mm square drive, HSS with steam tempered surface finish and 30° helix angle for 1.5xD through hole threading in free machining steel.


Product Specifications
Connection Diameter (Inch)0.315"
Overall Length (Inch)3.7008"
Clamping Width (mm)6.3mm
Thread Diameter (mm)6.6mm
No of Flutes2
Flute Helix Angle30
Thread Diameter Size5/16
Threading Length (mm)21mm
Material CodeHSS
Thread Tolerance Class2B
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleC 2-3
Surface ColorBlack
Thread FormUNC-Unified Coarse
