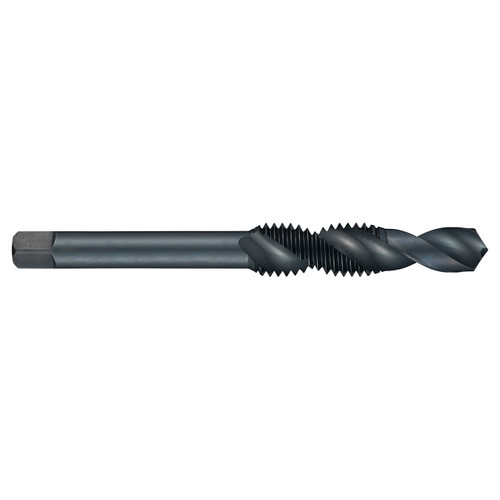

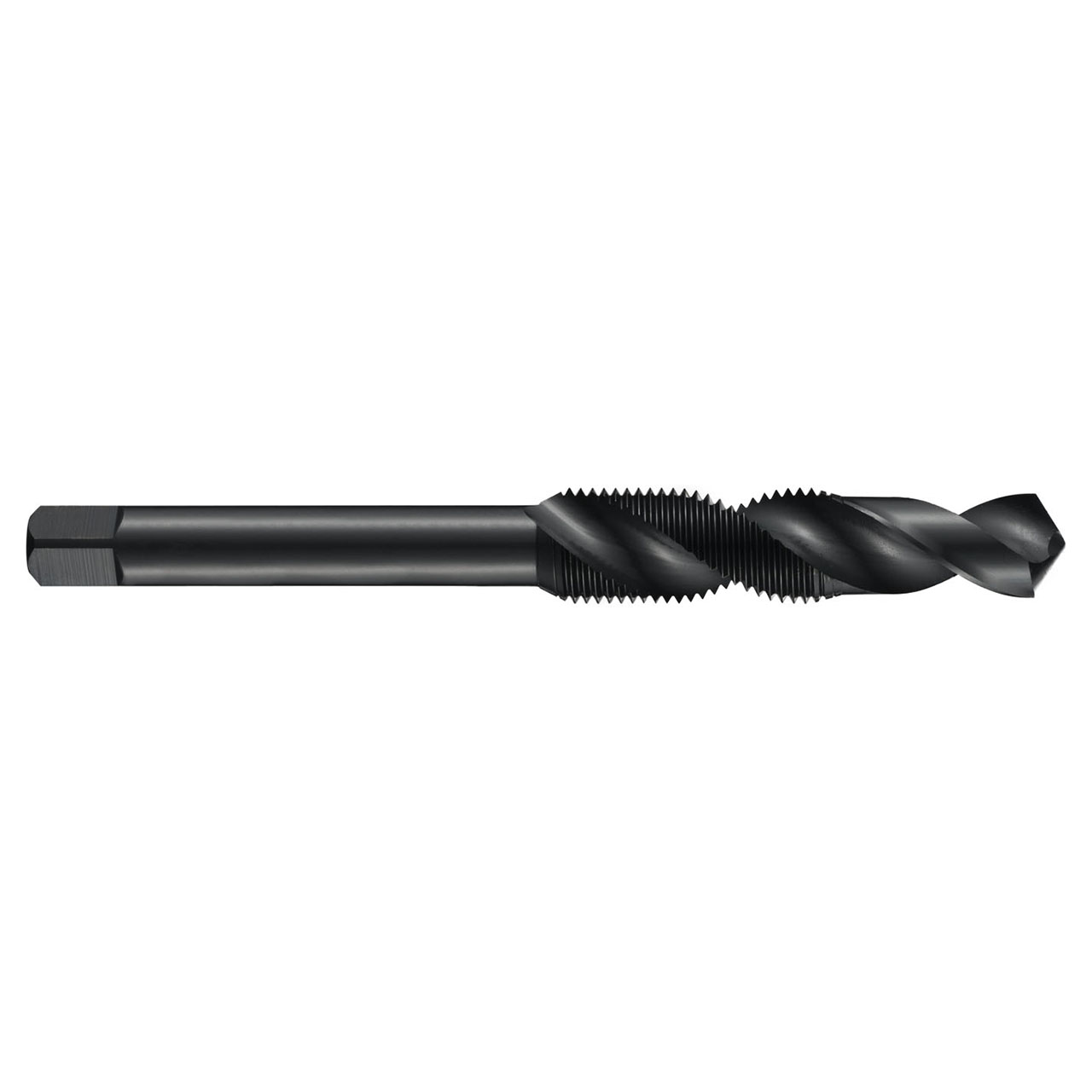

Combination drill-tap with a 30° spiral flute, for Unified National Fine thread UNF 5/16" with 24 TPI and Medium class of fit, dimensions according to DORMER-DIN standard with 8.0mm shank and 6.3mm square drive, HSS with steam tempered surface finish and 30° helix angle for 1.5xD through hole threading in free machining steel.
Product Specifications
| Connection Diameter (Inch) | 0.315" |
| Overall Length (Inch) | 3.7008" |
| Clamping Width (mm) | 6.3mm |
| Thread Diameter (mm) | 6.9mm |
| No of Flutes | 2 |
| Flute Helix Angle | 30 |
| Thread Diameter Size | 5/16 |
| Threading Length (mm) | 22mm |
| Material Code | HSS |
| Thread Tolerance Class | Medium |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black |
| Thread Form | UNF-Unified Fine |
