Features

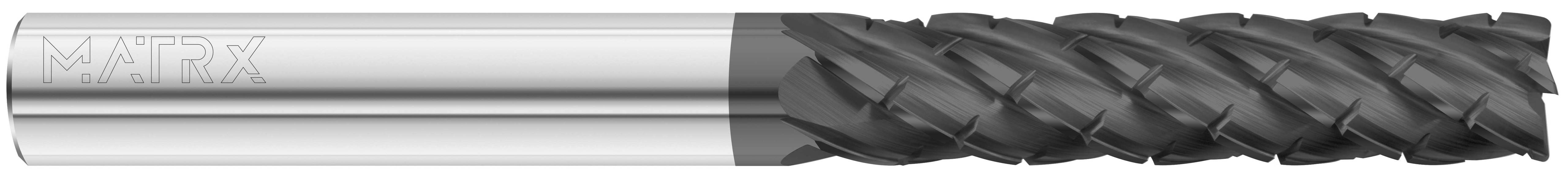

- The 5500 MATRX is a 5-flute, high performance end mill that allows for ultimate material removal rates in carbon composites, fiberglass, fiber reinforced materials, plastics, and green ceramics
- Its high shear and low cutting forces provide a clean edge with minimal material delamination or tearing of fibers
- The 5500 MATRX is stocked uncoated and with FC-1 coating
Product Specifications
| Mill Diameter (Inch) | 1/2" |
| Cutting Flute Length (Inch) | 1-1/4" |
| Shank Diameter (Inch) | 1/2" |
| Overall Length (Inch) | 3-1/2" |
| Mill Diameter (Decimal Inch) | 0.5000" |
| Cutting Flute Length (Decimal Inch) | 1.2500" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Overall Length (Decimal Inch) | 3.5000" |
| Mill Diameter (mm) | 12.70mm |
| Cutting Flute Length (mm) | 31.75mm |
| Shank Diameter (mm) | 12.70mm |
| Overall Length (mm) | 88.90mm |
| Radius (mm) | 0.76mm |
| Finish/Coating | FC1 |
| Number of Flutes | 5 |
| Helix Angle | 35 Degree |
| Flute Spiral Direction | Right Hand Spiral |
| Cutting Direction | Right Hand Cutting |
| Coolant Thorugh (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Mill Diameter (mm):
12.70mm
Number of Flutes:
5
End Type:
Corner Radius
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
1-1/4"
Length of Cut (Decimal Inch):
1.2500"
Length of Cut (mm):
31.75mm
Material:
Solid Carbide
Finish/Coating:
FC1
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Application:
Carbon Composites, Fiberglass, Fiber Reinforced Materials, Plastics, and Green Ceramics
Single or Double End:
Single
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.90mm
Series:
5500 MATRX
Ships:
From Partner Facility
