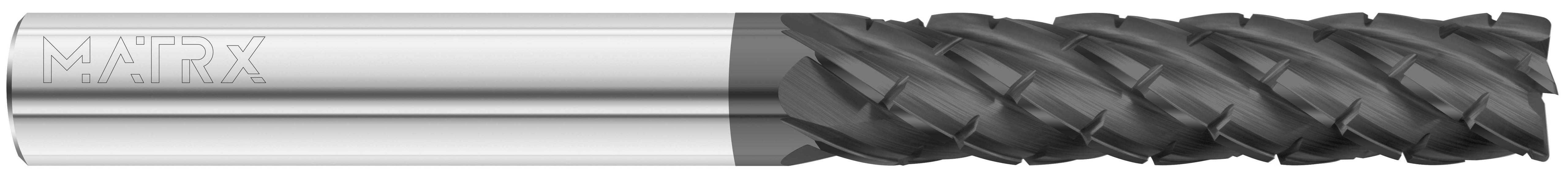

Fullerton Tool 25029 | 3/8" Diameter x 3/8" Shank x 1" LOC x 2-1/2" OAL 5 Flute FC1 Solid Carbide Corner Radius End Mill

SKU: 25055614 Weight: 0.11 LBS Minimum Purchase: 1 unit
UPC:
$220.36 $215.95
(You save $4.41)
Ships: From Partner Facility
Shipping: Calculated at Checkout

About This Item

Features

  • The 5500 MATRX is a 5-flute, high performance end mill that allows for ultimate material removal rates in carbon composites, fiberglass, fiber reinforced materials, plastics, and green ceramics
  • Its high shear and low cutting forces provide a clean edge with minimal material delamination or tearing of fibers
  • The 5500 MATRX is stocked uncoated and with FC-1 coating

Product Specifications
Mill Diameter (Inch) 3/8"
Cutting Flute Length (Inch) 1"
Shank Diameter (Inch) 3/8"
Overall Length (Inch) 2-1/2"
Mill Diameter (Decimal Inch) 0.3750"
Cutting Flute Length (Decimal Inch) 1"
Shank Diameter (Decimal Inch) 0.3750"
Overall Length (Decimal Inch) 2.5000"
Mill Diameter (mm) 9.52mm
Cutting Flute Length (mm) 25.40mm
Shank Diameter (mm) 9.52mm
Overall Length (mm) 63.50mm
Radius (mm) 0.76mm
Finish/Coating FC1
Number of Flutes 5
Helix Angle 35 Degree
Flute Spiral Direction Right Hand Spiral
Cutting Direction Right Hand Cutting
Coolant Thorugh (Yes/No) No
