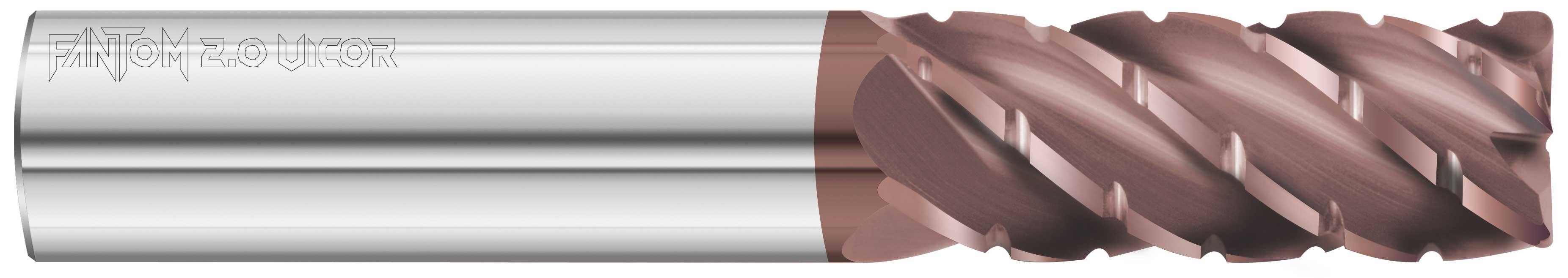

Fullerton Tool 34879 | 1/2" Diameter x 1/2" Shank x 1-1/4" LOC x 3" OAL 5 Flute FC20 Solid Carbide Corner Radius End Mill

About This Item

Features

• The 3415 Fantom Vicor is a 5-flute, high performance end mill with chip breakers
• The chip breakers allow reduced cutting forces and provides excellent chip control when machining difficult to machine materials like steels, stainless steels, super alloys, and titanium
• The 3415 Fantom Vicor is stocked with FC-20 coating

Product Specifications

Mill Diameter (Inch)	1/2"
Cutting Flute Length (Inch)	1-1/4"
Shank Diameter (Inch)	1/2"
Overall Length (Inch)	3"
Mill Diameter (Decimal Inch)	0.5000"
Cutting Flute Length (Decimal Inch)	1.2500"
Shank Diameter (Decimal Inch)	0.5000"
Overall Length (Decimal Inch)	3"
Mill Diameter (mm)	12.70mm
Cutting Flute Length (mm)	31.75mm
Shank Diameter (mm)	12.70mm
Overall Length (mm)	76.20mm
Radius (mm)	0.76mm
Finish/Coating	FC20
Number of Flutes	5
Helix Angle	40 Degree
Flute Spiral Direction	Right Hand Spiral
Cutting Direction	Right Hand Cutting
Coolant Thorugh (Yes/No)	No
