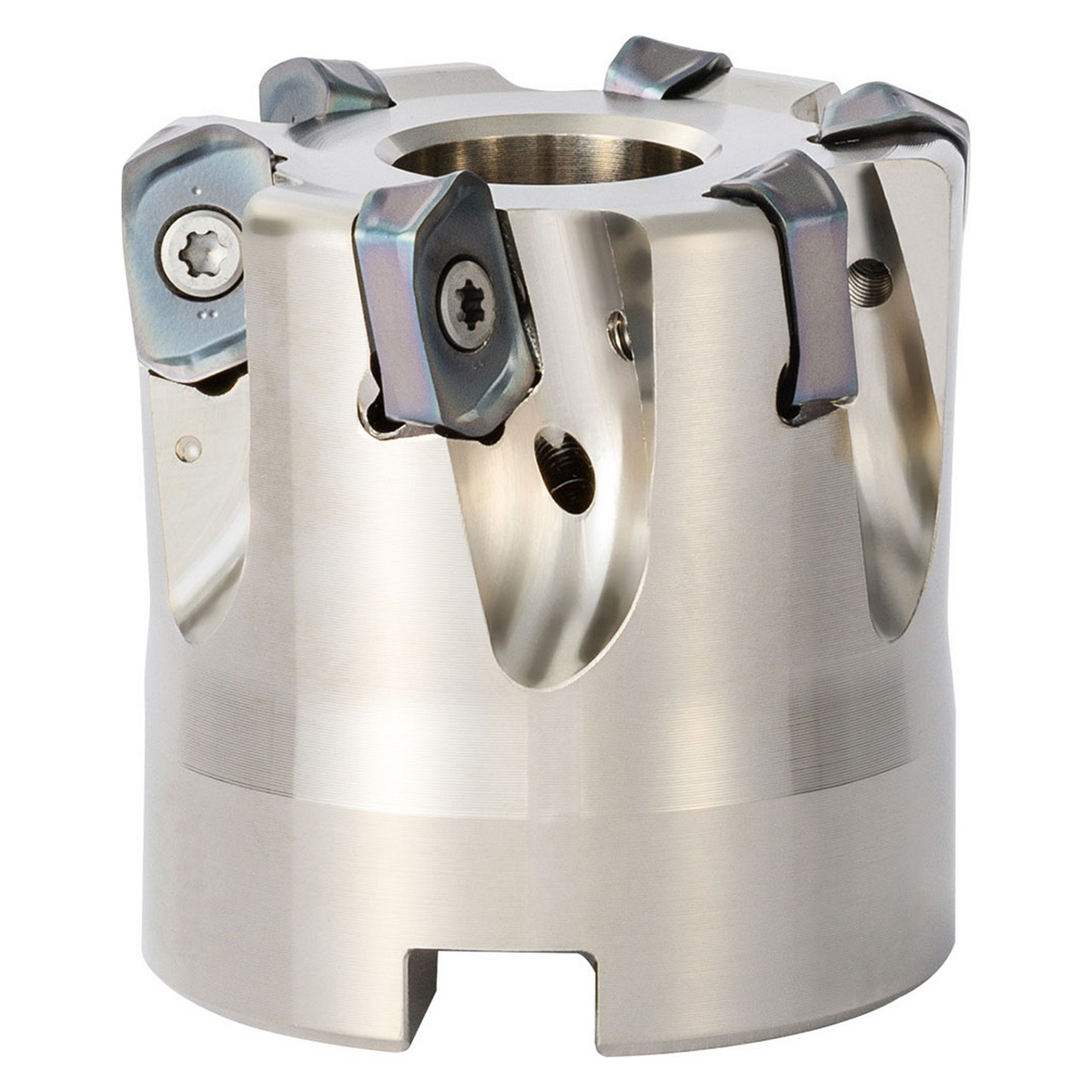

Kyocera Precision Tools THN08672 | MFH2000R047T 1.5669-2.0000" Diameter 7 Flute Steel Indexable High-Feed Face Mill

$599.59
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
2"
Cutting Diameter (Decimal Inch):
2.0000"
Cutting Diameter (mm):
50.80mm
Maximum Depth of Cut (Inch):
3/32"
Maximum Depth of Cut (Decimal Inch):
0.0984"
Maximum Depth of Cut (mm):
2.5mm
Arbor Hole Diameter (Inch):
3/4"
Arbor Hole Diameter (Decimal Inch):
0.7500"
Arbor Hole Diameter (mm):
19.05mm
Series:
MFHM;Cutter Style=MFH"
Number of Cutter Inserts:
7
SKU:
23234139
Weight:
1.52 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Large D.O.C. dramatically improves machining efficiency
  • Excellent performance in a wide range of applications, including automotive parts, difficult-to-cut materials, and molds

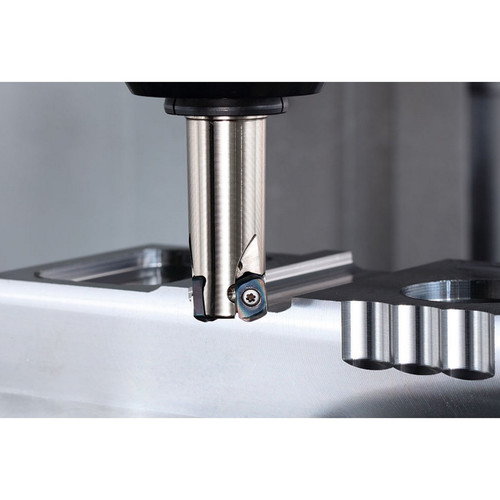

  • Achieves high efficiency machining in various shouldering, slotting, helical milling, and ramping applications
  • Convex cutting edge design reduces impact when entering workpiece

Product Specifications
EDP NumberTHN08672
Maximum Depth of Cut (Decimal Inch)0.0984"
Maximum Depth of Cut (mm)10.00mm
Cutting Diameter (Decimal Inch)1.5669 - 2.0000"
Cutting Diameter (mm)39.80 - 50.80mm
Cutting Diameter Minimum (Decimal Inch)1.5669"
Cutting Diameter Minimum (mm)39.80mm
Cutting Diameter Maximum (Decimal Inch)2.0000"
Cutting Diameter Maximum (mm)50.80mm
Cutting Diameter Maximum (mm)0.7500"
Connection Bore Diameter (mm)19.05mm
Contact Surface Diameter Machine Side (Decimal Inch)1.7500"
Contact Surface Diameter Machine Side (mm)44.45mm
Tool Entering Angle ( Degree)90 Degree
ApplicationHelical Milling | High Feed | Ramping | Shouldering
Coolant Through (Yes/No)Yes
Cutter PitchStandard Pitch
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes7
Number of Inserts7

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
2"
Cutting Diameter (Decimal Inch):
2.0000"
Cutting Diameter (mm):
50.80mm
Maximum Depth of Cut (Inch):
3/32"
Maximum Depth of Cut (Decimal Inch):
0.0984"
Maximum Depth of Cut (mm):
2.5mm
Arbor Hole Diameter (Inch):
3/4"
Arbor Hole Diameter (Decimal Inch):
0.7500"
Arbor Hole Diameter (mm):
19.05mm
Series:
MFHM;Cutter Style=MFH"
Number of Cutter Inserts:
7
