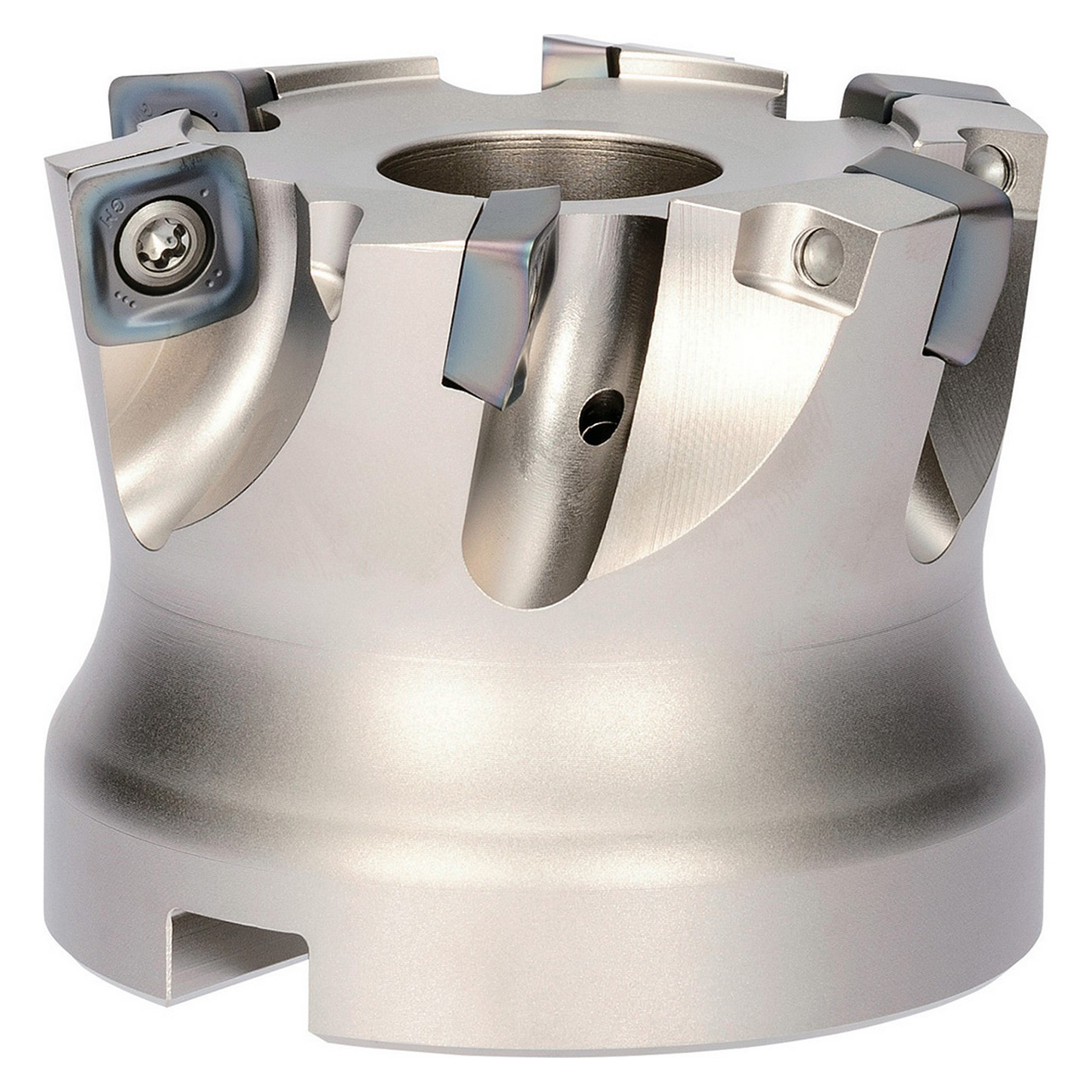

Features:
| EDP Number | THN07676 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591" |
| Shank Width (Decimal Inch) | 0.9843" |
| Cutting Diameter (Decimal Inch) | 2.4803 - 3.1496" |
| Cutting Diameter (mm) | 63.00 - 80.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 2.4803" |
| Cutting Diameter Minimum (mm) | 63.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 3.1496" |
| Cutting Diameter Maximum (mm) | 80.00mm |
| Cutting Diameter Maximum (mm) | 1.0630" |
| Connection Bore Diameter (mm) | 27.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.9921" |
| Contact Surface Diameter Machine Side (mm) | 76.00mm |
| Tool Entering Angle ( Degree) | 10 Degree |
| Application | Facing | Helical Milling | Plunging | Ramping | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Cutter Pitch | Standard Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 7 |
| Number of Inserts | 7 |
