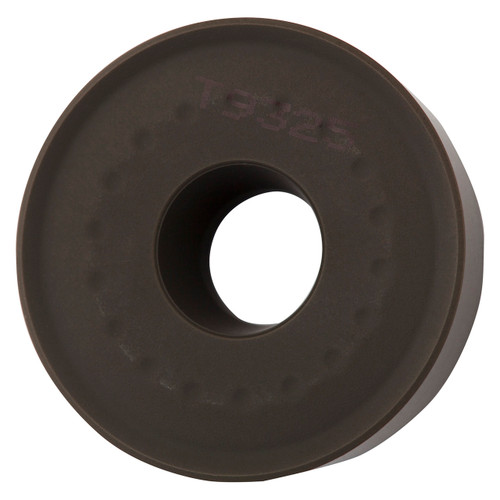

Special design positive turning insert, round with 7° clearance, a diameter of 32 mm, 9.52 mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM2, in grade T9335, a MT-CVD coated functionally graded WC-Co carbide within ISO range P20-P45, for heavy to medium machining of steels.
Product Specifications
| EDP Number | 6754925 |
| Max Depth of Cut (mm) | 8 mm |
| Max Depth of cut (Inch) | 0.315" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 9.5 mm |
| Fixing Hole Diameter (Inch) | 0.374" |
| Insert Diameter (mm) | 32 mm |
| 1.26" | |
| Insert Thickness (mm) | 9.525 mm |
| Insert Thickness (Inch) | 0.375" |
| Coating Process | MT-CVD |
| Coating | T9335 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 3 mm |
| Min Depth of Cut (Inch) | 0.118" |
| Chipbreaker Manufacturer's Designation | RM2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Thickness (Inch):
3/8"
Thickness (Decimal Inch):
0.3750"
Thickness (mm):
9.525mm
interval quantity:
5
