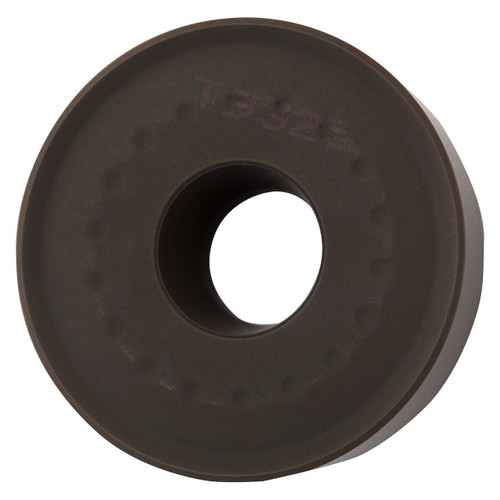

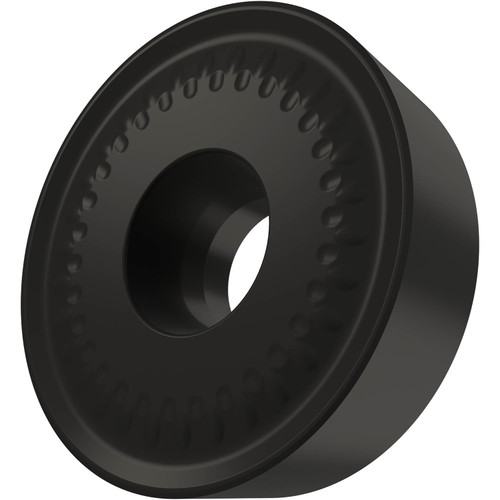

Special design positive turning insert, round with 7 Degree clearance, a diameter of 32 mm, 9.52 mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker 361 with rounded cutting edges with facet, in grade 6640, a MT-CVD coated WC-Co carbide within ISO range P20-P40, for heavy to medium machining of steels.
Product Specifications
| EDP Number | 6751668 |
| Max Depth of Cut (mm) | 8 mm |
| Max Depth of cut (Inch) | 0.315" |
| Coating Property | 1 |
| Body Diameter (Inch) | |
| Fixing Hole Diameter (mm) | 9.5 mm |
| Fixing Hole Diameter (Inch) | 0.374" |
| Insert Diameter (mm) | 32 mm |
| 1.26" |
| Insert Thickness (mm) | 9.525 mm |
| Insert Thickness (Inch) | 0.375" |
| Coating Process | MT-CVD |
| Coating | 6640 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 3 mm |
| Min Depth of Cut (Inch) | 0.118" |
| Chipbreaker Manufacturer's Designation | 361 |
| Country of origin | Czech Republic |
