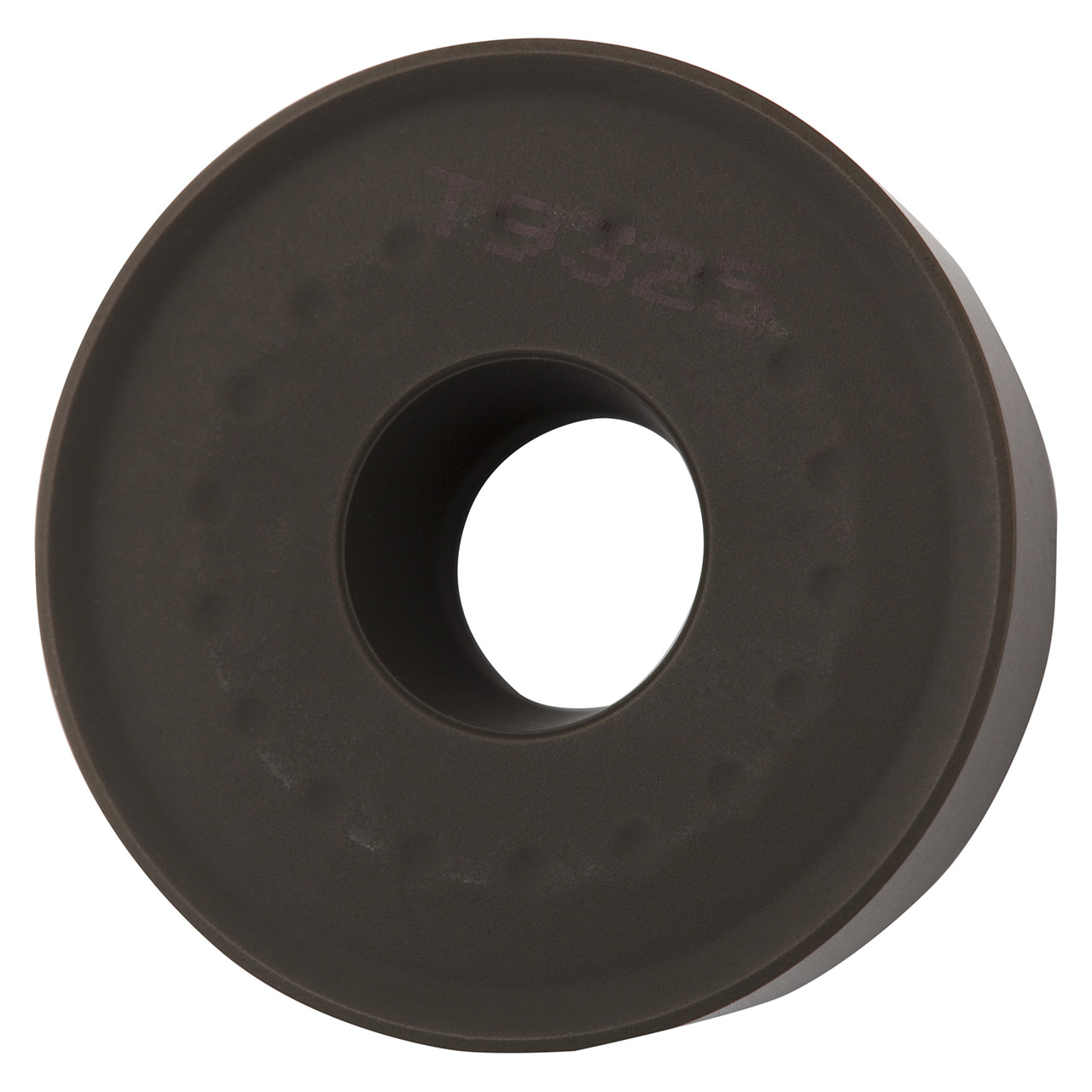

Special design positive turning insert, round with 7 Degree clearance, a diameter of 32 mm, 9.52 mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM2, in grade T9315, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05-P25, for heavy to medium machining of steels.
Product Specifications
| EDP Number | 6755596 |
| Max Depth of Cut (mm) | 8 mm |
| Max Depth of cut (Inch) | 0.315" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 9.5 mm |
| Fixing Hole Diameter (Inch) | 0.374" |
| Insert Diameter (mm) | 32 mm |
| 1.26" |
| Insert Thickness (mm) | 9.525 mm |
| Insert Thickness (Inch) | 0.375" |
| Coating Process | MT-CVD |
| Coating | T9315 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 2 mm |
| Min Depth of Cut (Inch) | 0.079" |
| Chipbreaker Manufacturer's Designation | RM2 |
| Country of origin | Czech Republic |
