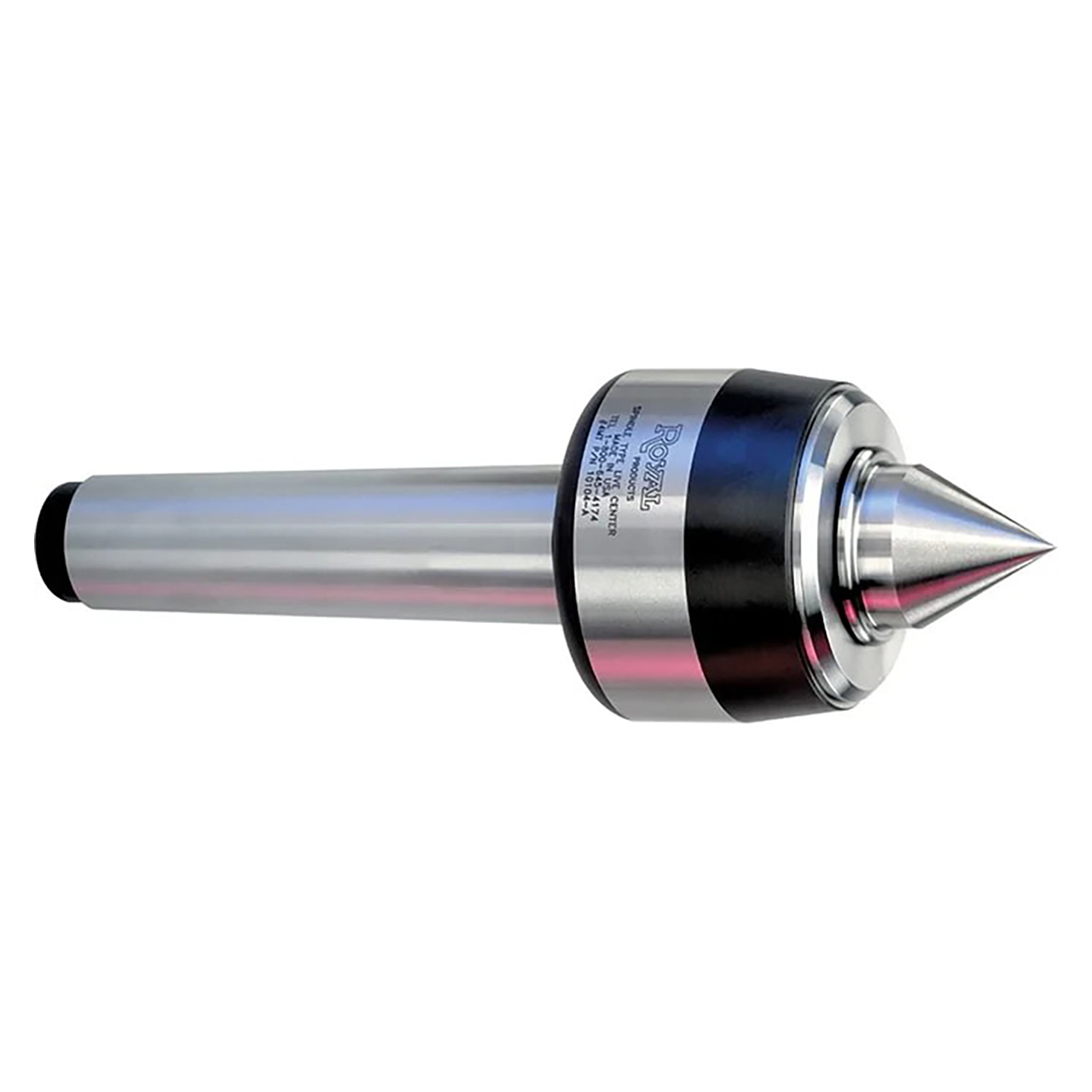

- Excellent heavy-duty live center designed to handle almost all CNC and manual turning jobs
- Heavy-duty precision bearings provide exceptional radial and thrust load capacities
- The thick, rigid point extends into the shank where it is supported by a large needle bearing for increased strength and vibration dampening
- Exclusive Roto-Shield coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life
- Body and point are hardened and ground for accuracy and durability
Product Specifications
| Center Dimension A (Center Taper) | 2 MT |
| Center Dimension B (Inch) | 1.75 |
| Center Dimension E (Inch) | 1.470 |
| Weight of Workpiece (lbs.) | 725 |
| Center Dimension F (Inch) | 1.01 |
| Center Dimension G (Inch) | 0.88 |
| Max Suggested RPM | 6,000 |
| Thrust Load (lbs.) | 2,360 |
