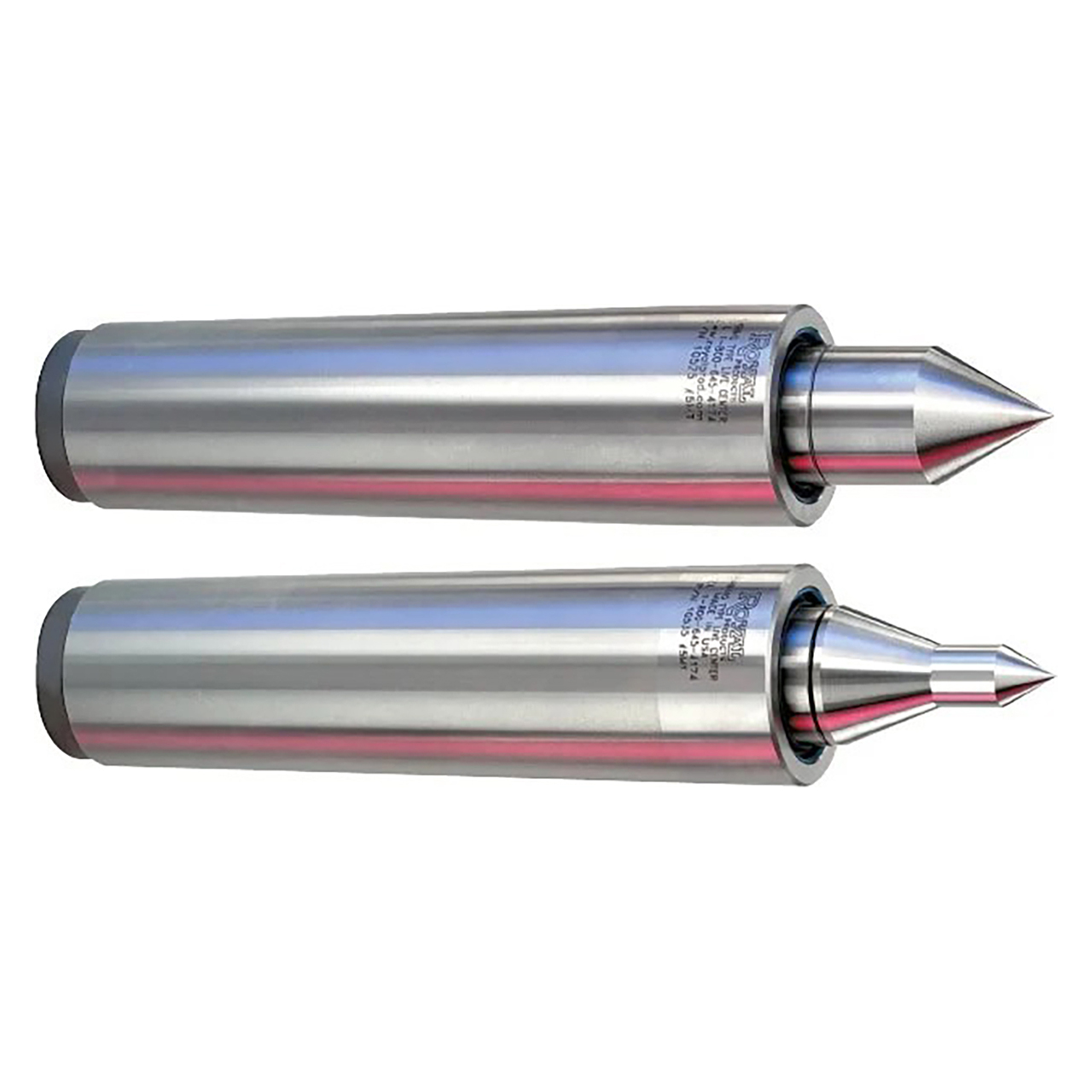

- Unique spring-loaded point compensates for workpiece thermal expansion
- Low-profile design provides outstanding tool clearance
- Can be used in the turret of sub-spindle machines to overcome a lack of hydraulic compensation
Product Specifications
| Center Dimension A (Center Taper) | 3 MT |
| Center Dimension B (Inch) | 0.94 |
| Center Dimension F (Inch) | 1.16 |
| Weight of Workpiece (lbs.) | 260 |
| Center Dimension G (Inch) | 0.55 |
| Center Dimension H (Inch) | 0.25 |
| Center Dimension I (Inch) | 0.47 |
| Spring Travel | 0.14 |
| Max Suggested RPM | 5,000 |
| Thrust Load (lbs.) | 315 |
