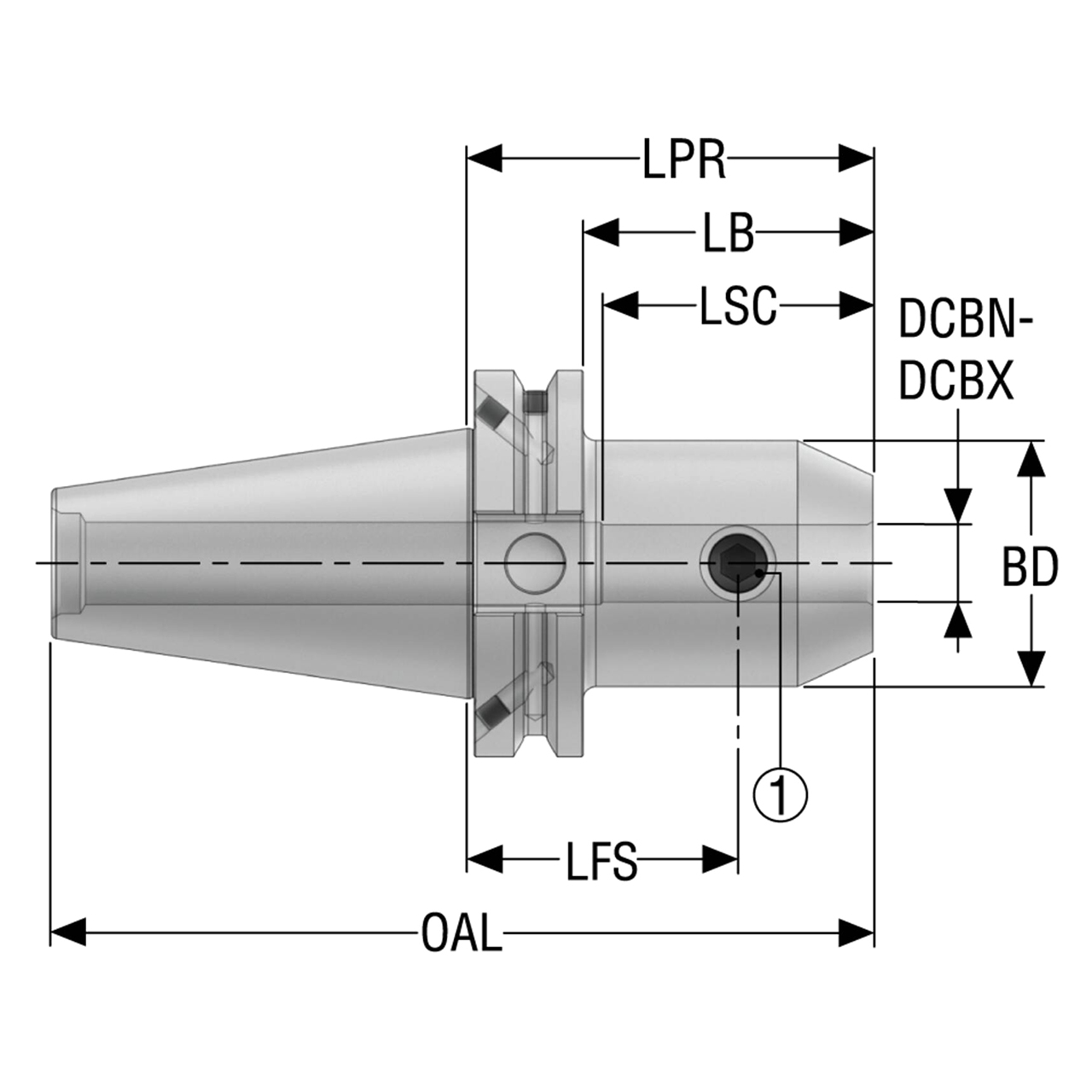

Product Specifications
| Manufacturer Part Number | 10008204 |
| Body Diameter (Decimal Inch) | 1.850" |
| Body Diameter (mm) | 47.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.625" |
| Maximum Connection Bore Diameter (mm) | 15.88mm |
| Body Length (Decimal Inch) | 5.000" |
| Body Length (mm) | 127.00mm |
| Functional Length Secondary (Decimal Inch) | 4.812" |
| Functional Length Secondary (mm) | 122.23mm |
| Protruding Length (Decimal Inch) | 5.750" |
| Protruding Length (mm) | 146.05mm |
| Clamping Length (Decimal Inch) | 1.870" |
| Clamping Length (mm) | 47.50mm |
| Overall Length (Decimal Inch) | 9.750" |
| Overall Length (mm) | 247.65mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 12000 rpm |
| Product Type | End Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
1-17/20"
Body Diameter (Decimal Inch):
1.8500"
Body Diameter (mm):
47.00mm
Overall Length (Inch):
9-3/4"
Overall Length (Decimal Inch):
9.7500"
Overall Length (mm):
247.65mm
interval quantity:
1
