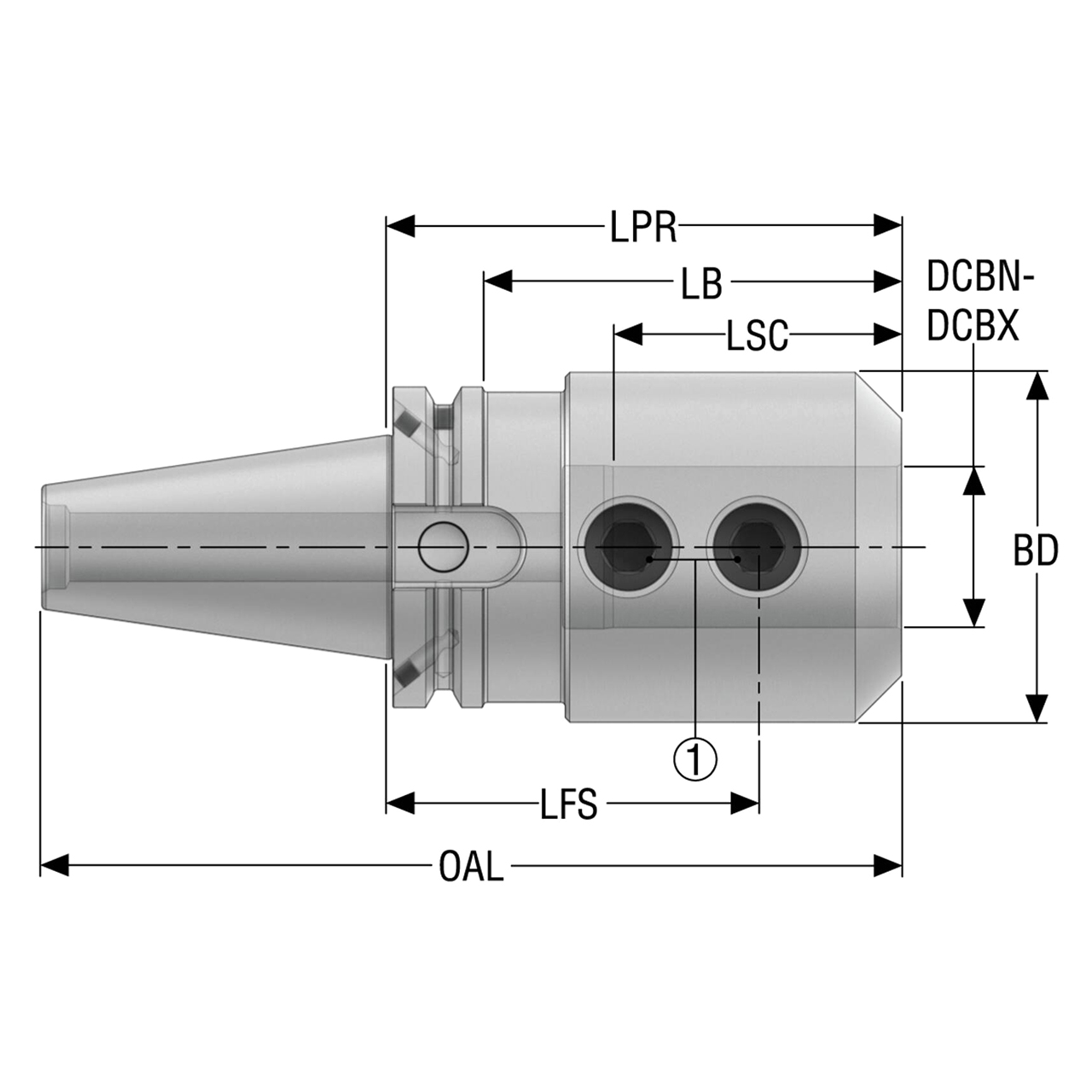

| Manufacturer Part Number | 10008208 |
| Body Diameter (Decimal Inch) | 2.730" |
| Body Diameter (mm) | 69.35mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.250" |
| Maximum Connection Bore Diameter (mm) | 31.75mm |
| Body Length (Decimal Inch) | 3.250" |
| Body Length (mm) | 82.55mm |
| Functional Length Secondary (Decimal Inch) | 2.875" |
| Functional Length Secondary (mm) | 73.03mm |
| Protruding Length (Decimal Inch) | 4.000" |
| Protruding Length (mm) | 101.60mm |
| Clamping Length (Decimal Inch) | 2.244" |
| Clamping Length (mm) | 57.00mm |
| Overall Length (Decimal Inch) | 8.000" |
| Overall Length (mm) | 203.20mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 12000 rpm |
| Product Type | End Mill Holder |
