Seco Tools 03201518 | CAT50ADB-EM0.625-3.750 38.10mm Diameter x 196.85mm OAL End Mill Holder

$191.00 $137.52
(You save $53.48)
Brand:
Seco Tools
Hole Diameter (Decimal Inch):
1.5000"
interval quantity:
1
SKU:
55075132
UPC:
Weight:
7.72 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 03201518 | CAT50ADB-EM0.625-3.750 38.10mm Diameter x 196.85mm OAL End Mill Holder

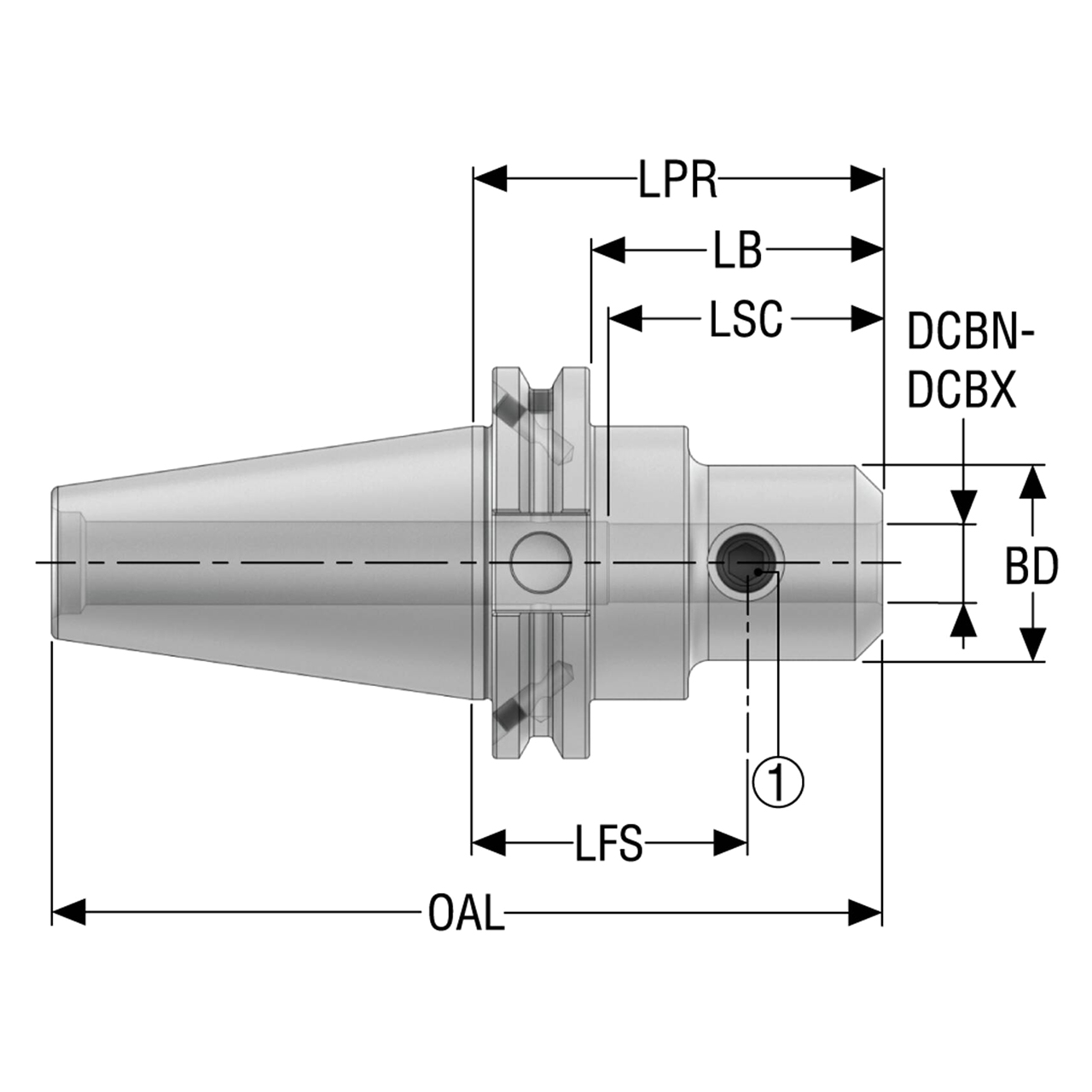

Product Specifications
Manufacturer Part Number03201518
Body Diameter (Decimal Inch)1.500"
Body Diameter (mm)38.10mm
Minimum Connection Bore Diameter (Decimal Inch)0.625"
Minimum Connection Bore Diameter (mm)15.87mm
Maximum Connection Bore Diameter (Decimal Inch)0.625"
Maximum Connection Bore Diameter (mm)15.87mm
Body Length (Decimal Inch)3.000"
Body Length (mm)76.20mm
Functional Length Secondary (Decimal Inch)2.812"
Functional Length Secondary (mm)71.43mm
Protruding Length (Decimal Inch)2.500"
Protruding Length (mm)63.50mm
Clamping Length (Decimal Inch)1.880"
Clamping Length (mm)47.75mm
Overall Length (Decimal Inch)7.750"
Overall Length (mm)196.85mm
Data Chip Provision1
Maximum Rotational Speed (rpm)12000 rpm
Product TypeEnd Mill Holder
