Product Specifications
| Manufacturer Part Number | 10008206 |
| Body Diameter (Decimal Inch) | 1.980" |
| Body Diameter (mm) | 50.30mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.750" |
| Maximum Connection Bore Diameter (mm) | 19.05mm |
| Body Length (Decimal Inch) | 3.250" |
| Body Length (mm) | 82.55mm |
| Functional Length Secondary (Decimal Inch) | 3.000" |
| Functional Length Secondary (mm) | 76.20mm |
| Protruding Length (Decimal Inch) | 4.000" |
| Protruding Length (mm) | 101.60mm |
| Clamping Length (Decimal Inch) | 2.000" |
| Clamping Length (mm) | 50.80mm |
| Overall Length (Decimal Inch) | 8.000" |
| Overall Length (mm) | 203.20mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 12000 rpm |

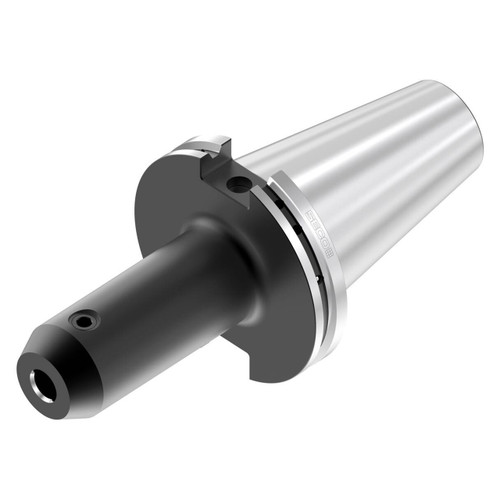

| Product Type | End Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
1-49/50"
Body Diameter (Decimal Inch):
1.9800"
Body Diameter (mm):
50.30mm
Overall Length (Inch):
8"
Overall Length (Decimal Inch):
8.0000"
Overall Length (mm):
203.20mm
