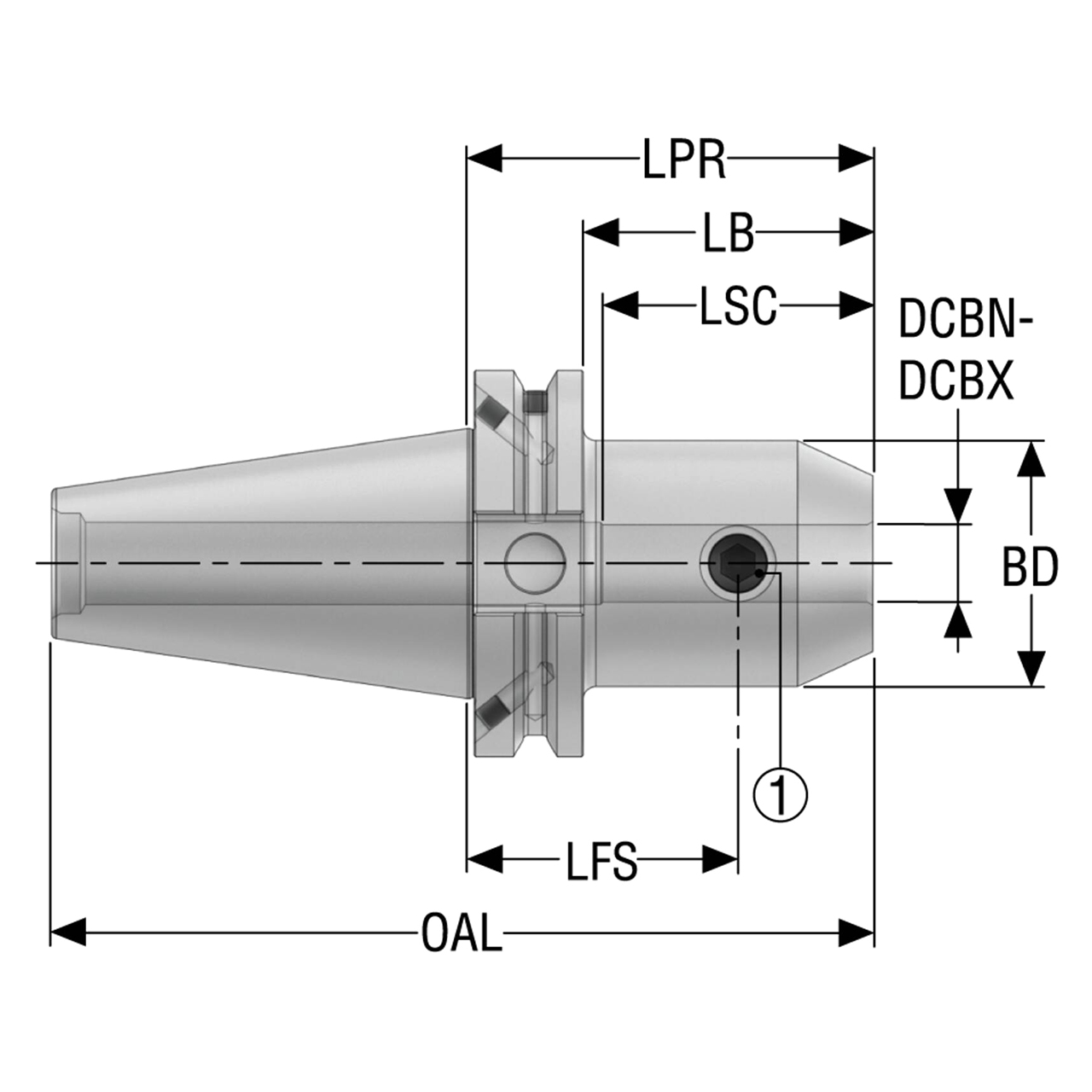

| Manufacturer Part Number | 10008200 |
| Body Diameter (Decimal Inch) | 1.980" |
| Body Diameter (mm) | 50.30mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.750" |
| Maximum Connection Bore Diameter (mm) | 19.05mm |
| Body Length (Decimal Inch) | 2.250" |
| Body Length (mm) | 57.15mm |
| Functional Length Secondary (Decimal Inch) | 2.000" |
| Functional Length Secondary (mm) | 50.80mm |
| Protruding Length (Decimal Inch) | 3.000" |
| Protruding Length (mm) | 76.20mm |
| Clamping Length (Decimal Inch) | 2.008" |
| Clamping Length (mm) | 51.00mm |
| Overall Length (Decimal Inch) | 5.687" |
| Overall Length (mm) | 144.45mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 18000 rpm |
| Product Type | End Mill Holder |
