Carr Lane CL-169-SHPA-6 | 1/2-13 Thread Slotted-Heel Padded Clamp Strap

$68.91
Brand:
Carr Lane
Thread:
1/2-13"
SKU:
50016790
UPC:
Weight:
2.82 LBS
Shipping:
Calculated at Checkout

Slotted-Heel Padded Clamp Straps

Slotted-Heel Clamp Strap that features a replaceable clamping pad attached with two screws (furnished). Padded clamp straps also easily accept custom pads or other attachments. These clamp straps have a slot underneath to slide straight back for clear loading. The tapped hole at the rear of each side allows installing a Finger Pin. Made in USA.

Clamping Pads

A steel Clamping Pad is furnished with each clamp strap.

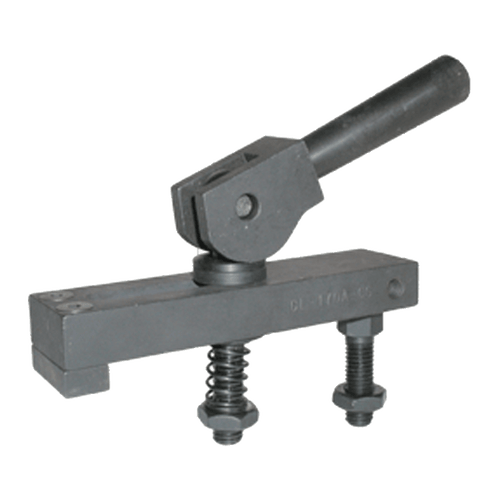

Assembly with Cam Handle & Spherical Washer (-7)

This clamp assembly includes a Slotted-Heel Padded Clamp Strap plus the following Items:

  • Cam Handle
  • Spherical Washer
  • Eye Bolt
  • Clevis Pin
  • Clamp Spring
  • Flat Washer
  • Jam Nut
  • Clamp Rest

Material

ItemMaterialHeat TreatFinishDFARSRoHS
Clamp Strap1018 SteelCarburized HardenedBlack OxideYesYes
Flat-Head Socket ScrewsSteel-Black OxideYesYes
Steel Clamping Pad1018 SteelCarburized HardenedBlack OxideYesYes
Plastic Clamping PadPlastic--YesYes
Brass Clamping PadBrass--YesYes

Parts Specification

A Thread (Inch)D (Inch)E (Inch)F (Inch)S (Inch)
1/2-13"4-1/2"7/8"1-1/4"2-1/8"

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Carr Lane
Thread:
1/2-13"
