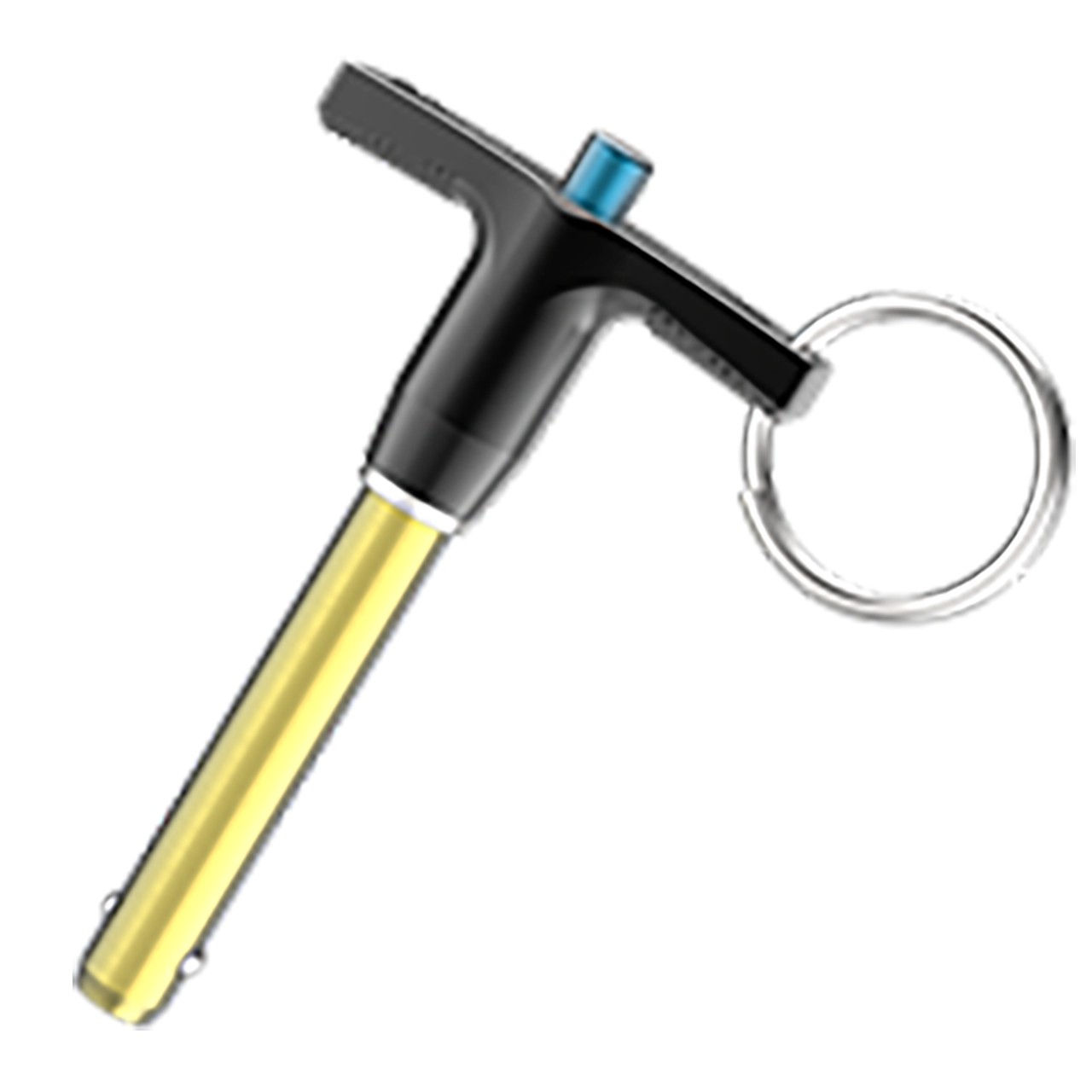

Carr Lane CL-3-BLPT-1.00-S-C | 3/16" Diameter x 1" Grip Length T Handle Ball Lock Pin With Cable

$23.59
Brand:
Carr Lane
Diameter (Inch):
3/16"
Grip Length (mm):
25.40mm
Grip Length (Decimal Inch):
1.0000"
Grip Length (Inch):
1"
Diameter (Decimal Inch):
0.1875"
Diameter (mm):
4.77mm
SKU:
50010964
Weight:
0.05 LBS
Shipping:
Calculated at Checkout

T Handle

Ball Lock Pins are high-strength, quick-release alignment pins with a precision ground shank. These standard single-acting Ball Lock Pins are positive locking until released by pushing the button, which moves the center spindle forward to allow the locking balls to retract. Made in USA.

Technical Information

Ball Lock Pins are positive locking until released by pushing the button, which moves the center spindle forward to allow the balls to retract.


Optional 4 Ball

Pins are optionally available with four balls instead of two, for more-distributed ball-pullout force. To order, add "-4BALL" to the part number.


Optional Cable

To order pins with a standard cable assembly attached, add "-C" to the part number.

  • For an optional 10" nylon lanyard, add "-NL" to the part number


Material


Parts Specification

A Diameter Nominal (Inch)A Diameter Actual (Inch)Grip Length (Inch)B (Inch)C (Inch)D Diameter (Inch)E (Inch)F (Inch)G Diameter (Inch)H (Inch)
3/16" (#10)0.1885/0.1870"1"0.219"0.245"0.22"1.26"0.78"0.47"1.75"
