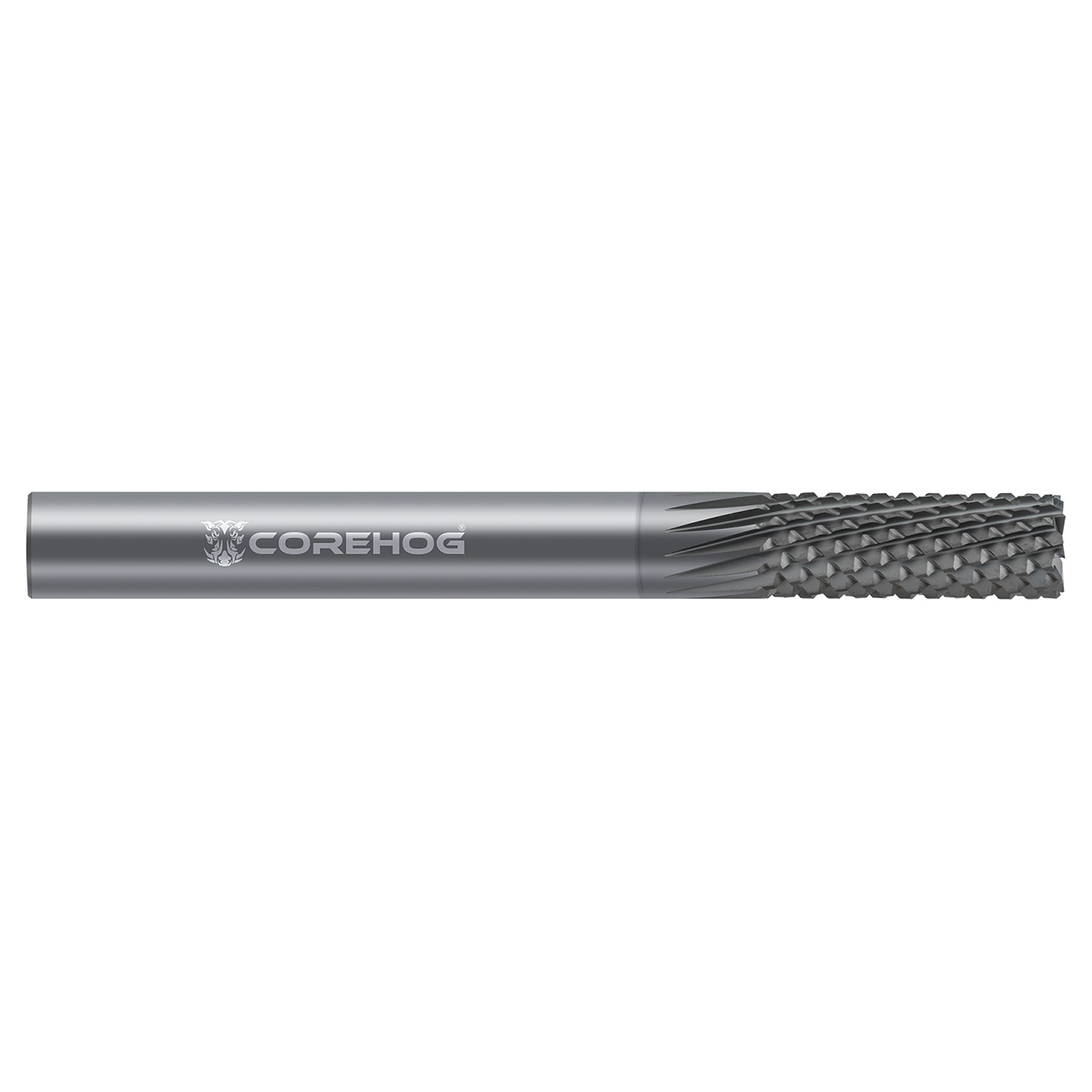

The downcut geometry of these fully stocked CoreHog CFRP routers-burr end style-downcut works to stabilize the part against the fixture, and reduces vibration, by applying downward pressure.
Features- Free cutting geometry minimizes delamination and provides excellent part finish
- Burr style end allows for ramping, not suited for plunge cutting
- Optimized for trimming CFRP and provides excellent performance in S-glass and other fiberglass materials
- True crystalline CVD diamond coating for drastically improved hardness for outstanding abrasion resistance and higher feed rates
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | C87132 |
| Cutter Diameter (Inch) | 0.3750" (3/8) |
| Length of Cut (Inch) | 1.0000" (1) |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Overall Length (Inch) | 3.000" (3) |
| Metric | N |
| Coating | CVD Diamond |
| Substrate | solid carbide |
| Number of Flutes | 14 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
CoreHog
Cutter Diameter (Inch):
3/8"
Cutter Diameter (Decimal Inch):
0.3750"
Number of Flutes:
14
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Finish/Coating:
CVD Diamond
Material:
Solid Carbide
