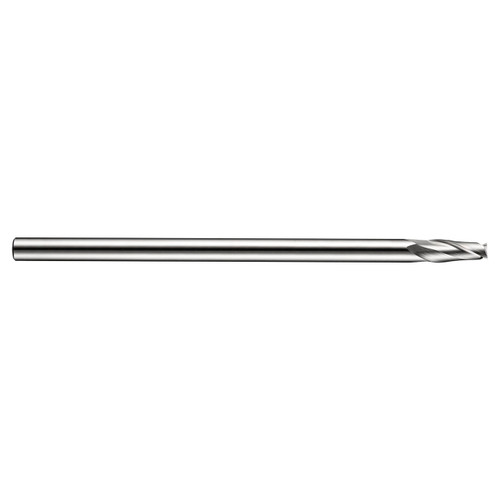

Dormer C16710.0 | 0.3937" Diameter x 7.874" OAL 2 Flute Bright Coated Square End Mill

$104.31
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25139362
Weight:
5.89 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

C167 2 flute milling cutters have a short 2 flute design which gives high rigidity for increased strength and reduced vibration. With extra-long reach for machining deep pockets in difficult to reach areas, they can be used for plunging, ramping and profile milling stainless steels, cast iron and steels. C167 milling cutters are manufactured from high speed cobalt which provides longer tool life and better performance. The bright finish prevents workpiece material from sticking to the cutting edge so you get a cleaner, more accurate result.


Product Specifications
Max Depth of Cut (mm)22mm
Connection Diameter (Inch)0.3937"
Cutting Diameter (Inch)0.3937"
Overall Length (Inch)7.874"
Material CodeHSS-E
Radial Rake Angle12
No of Flute2
Flute Helix Angle30
CoatingBright
Surface ColorBright Silver
