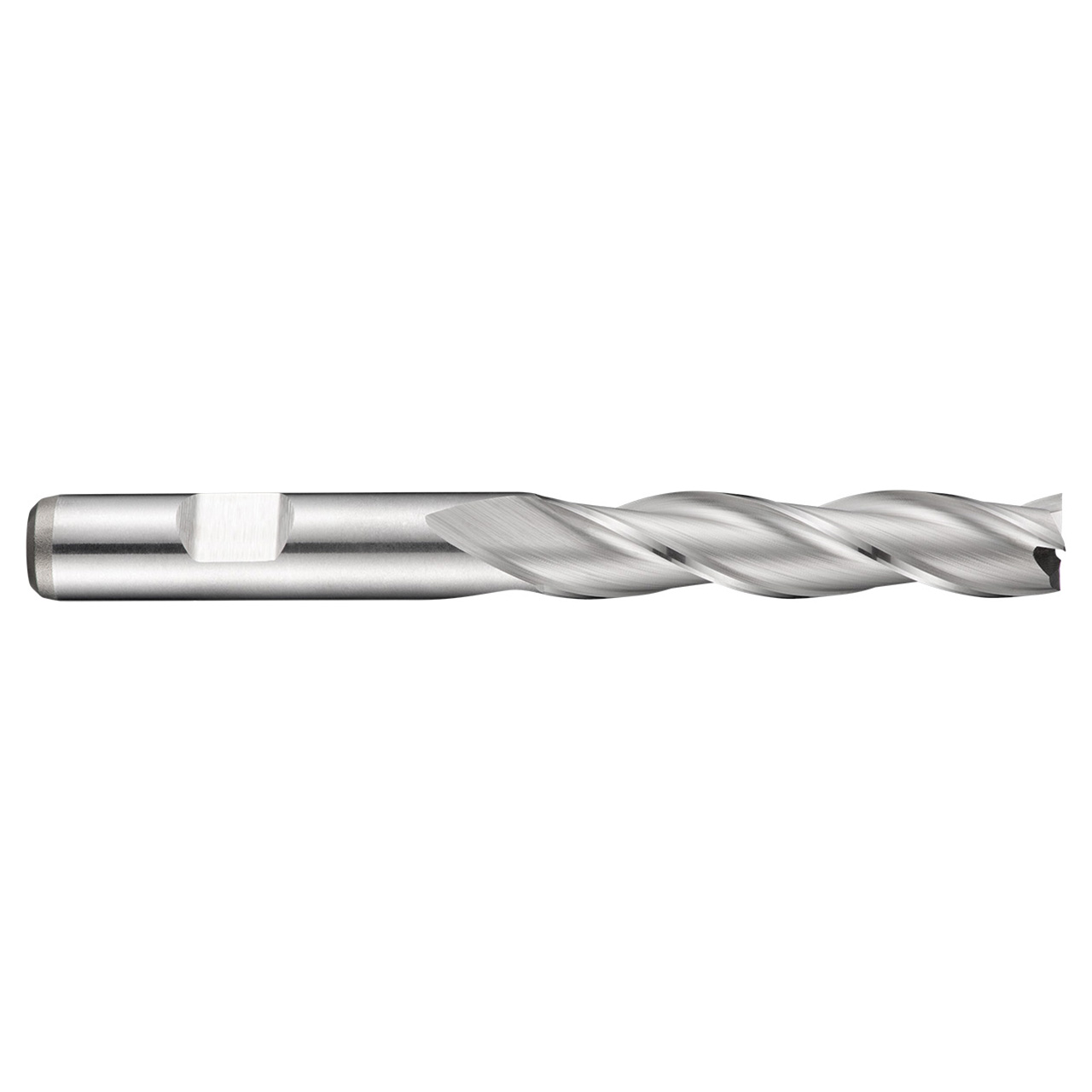

C346 3-flute milling cutters are designed to provide high rigidity for standard slotting and profile milling and can be used for plunging, ramping and profile milling in steels, stainless steels and cast iron. They are long series cutters for machining deeper slots and walls in places which are difficult to reach. C346 milling cutters have a long tool life and great performance thanks to the high speed cobalt used in manufacture, whilst the bright finish means clean and accurate milling is assured by preventing workpiece material from sticking to the cutting edges of the tool.
| Usable Length (mm) | 74.5mm |
| Max Depth of Cut (mm) | 63mm |
| Connection Diameter (Inch) | 0.6299" |
| Cutting Diameter (Inch) | 0.6299" |
| Overall Length (Inch) | 4.8425" |
| Material Code | HSS-E |
| Radial Rake Angle | 12 |
| No of Flute | 3 |
| Flute Helix Angle | 30 |
| Coating | Bright |
| Surface Color | Bright Silver |
