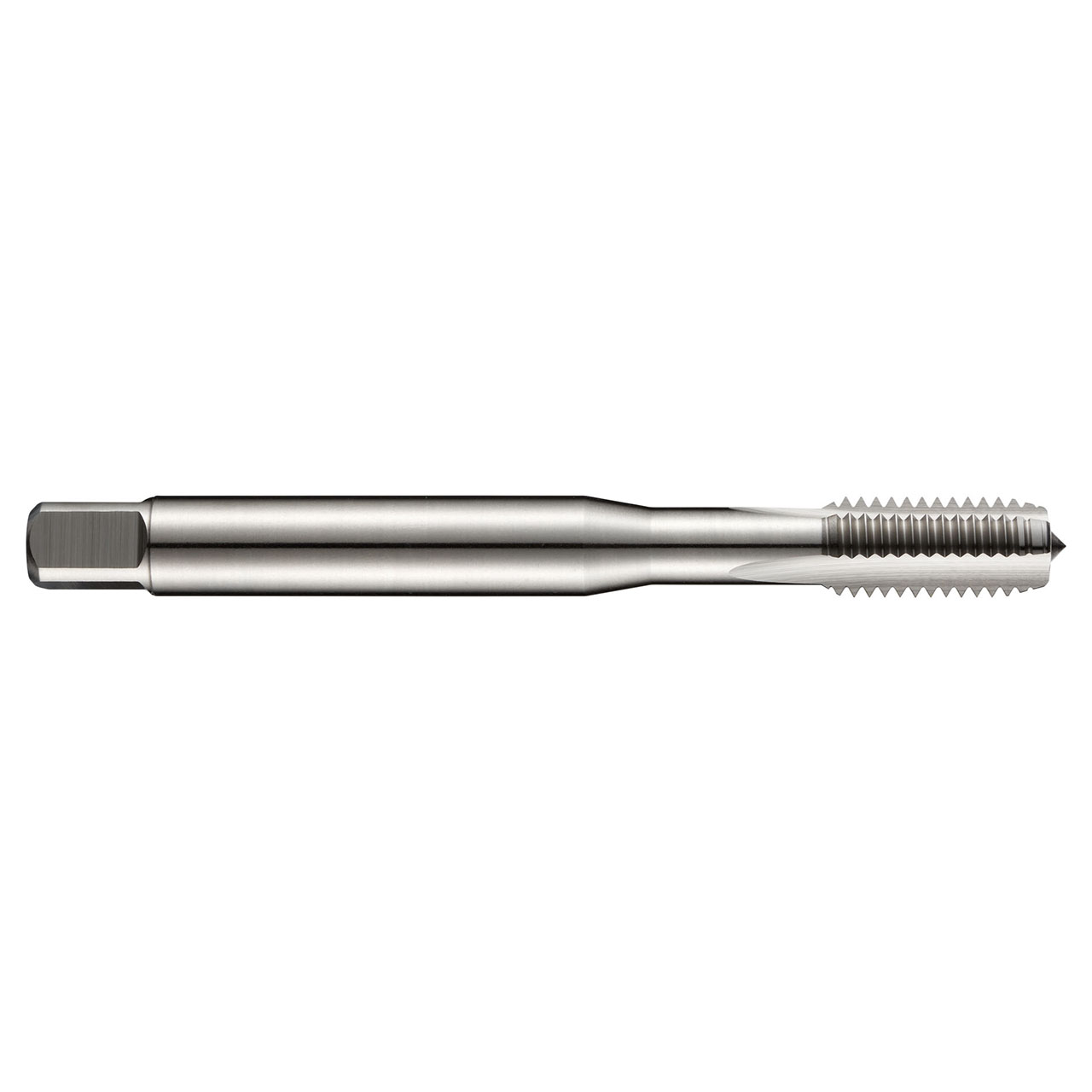

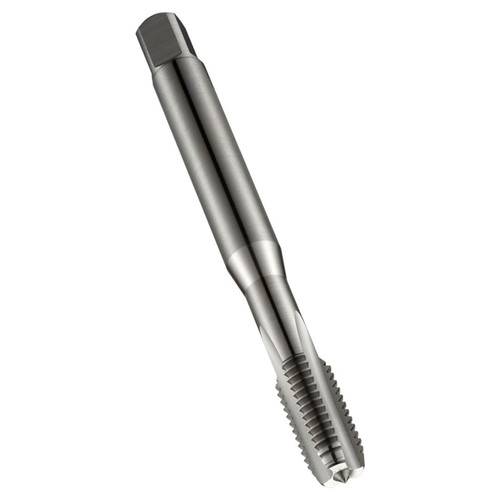

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M2.5 with 0.45mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 2.8mm shank and 2.1mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.
Product Specifications
| Connection Diameter (Inch) | 0.1102" |
| Overall Length (Inch) | 1.9685" |
| Clamping Width (mm) | 2.1mm |
| No of Flutes | 3 |
| Usable Length (mm) | 12.5mm |
| Thread Pitch (mm) | 0.45mm |
| Clamping Length | 5 |
| Thread Diameter Size | 2.5 |
| Threading Length (mm) | 8mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | A 6-8 / C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | M-Metric coarse |
