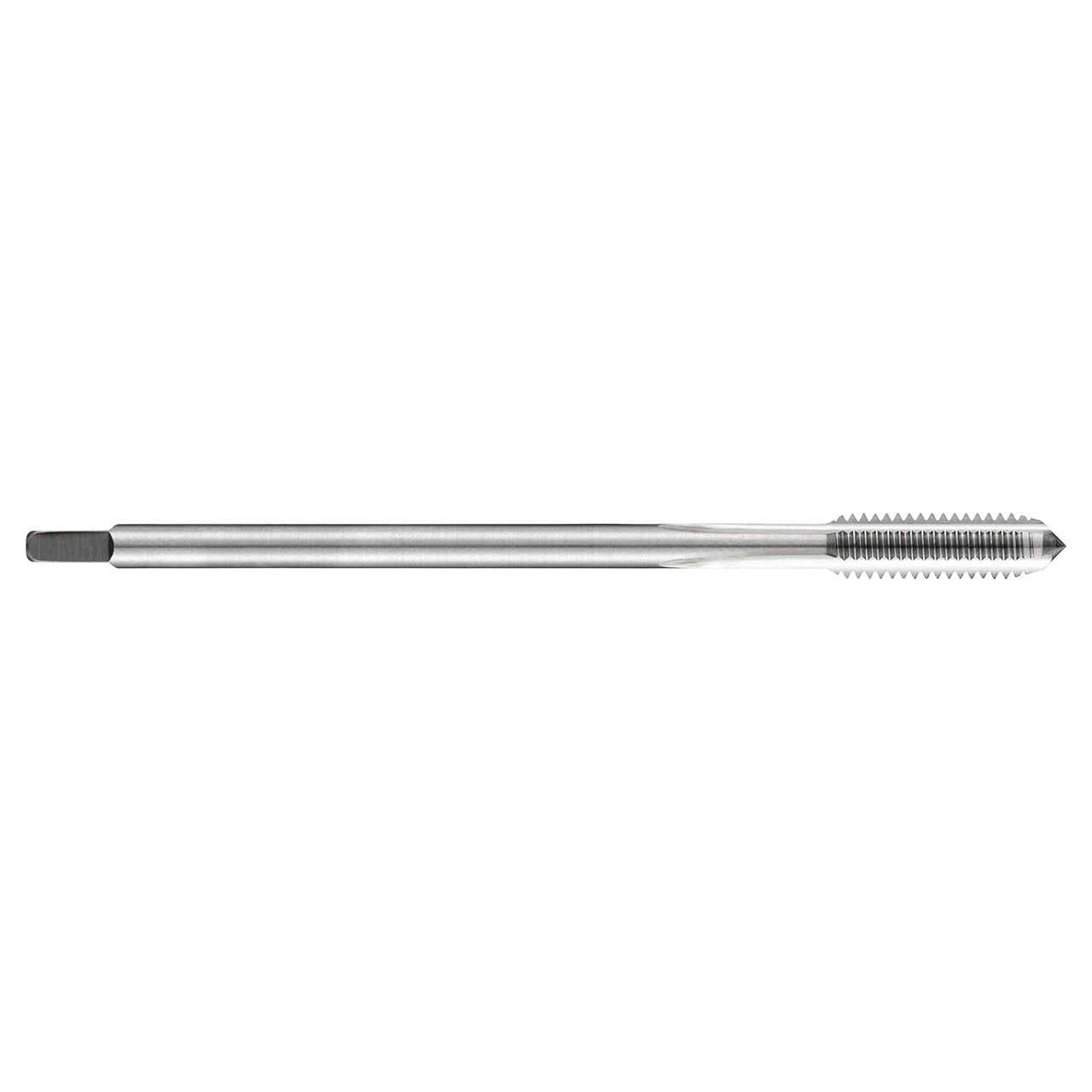

Straight flute tap with chamfer form A with a 6-8xP taper lead, for ISO-Metric thread M14 with 2.00mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 11.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.
Product Specifications
| Connection Diameter (Inch) | 0.4331" |
| Overall Length (Inch) | 4.3307" |
| Clamping Width (mm) | 9mm |
| No of Flutes | 3 |
| Thread Pitch (mm) | 2mm |
| Clamping Length | 12 |
| Thread Diameter Size | 14 |
| Threading Length (mm) | 25mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | A 6-8 / C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | M-Metric coarse |
