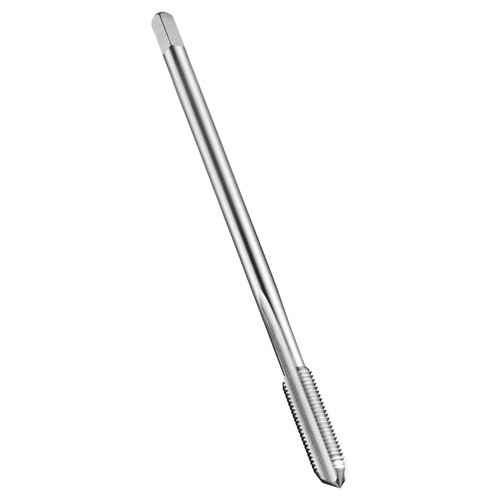

Dormer E2789/16 | 0.4331" Diameter x 3.937" OAL 4 Flute Bright Coated Straight Flute Tap

$80.55
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15022558
UPC:
7320760089682
Weight:
2.50 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 9/16" with 18 TPI and 2B class of fit, dimensions according to DIN 374 standard with 11.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.


Product Specifications
Connection Diameter (Inch)0.4331"
Overall Length (Inch)3.937"
Clamping Width (mm)9mm
Thread Diameter (mm)14.29mm
No of Flutes4
Clamping Length12
Thread Diameter Size9/16
Threading Length (mm)21mm
Material CodeHSS-E-PM
Thread Tolerance Class2B
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleC 2-3
Surface ColorBright Silver
Thread FormUNF-Unified Fine
