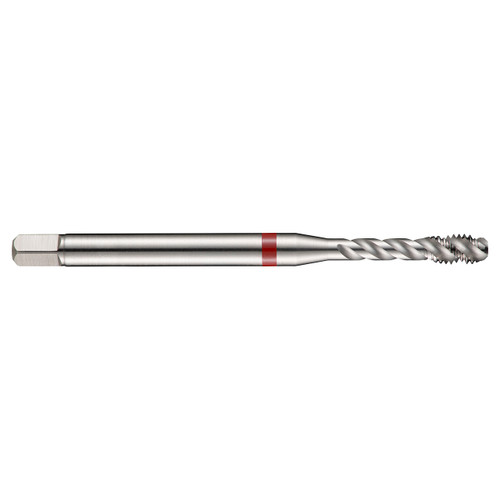

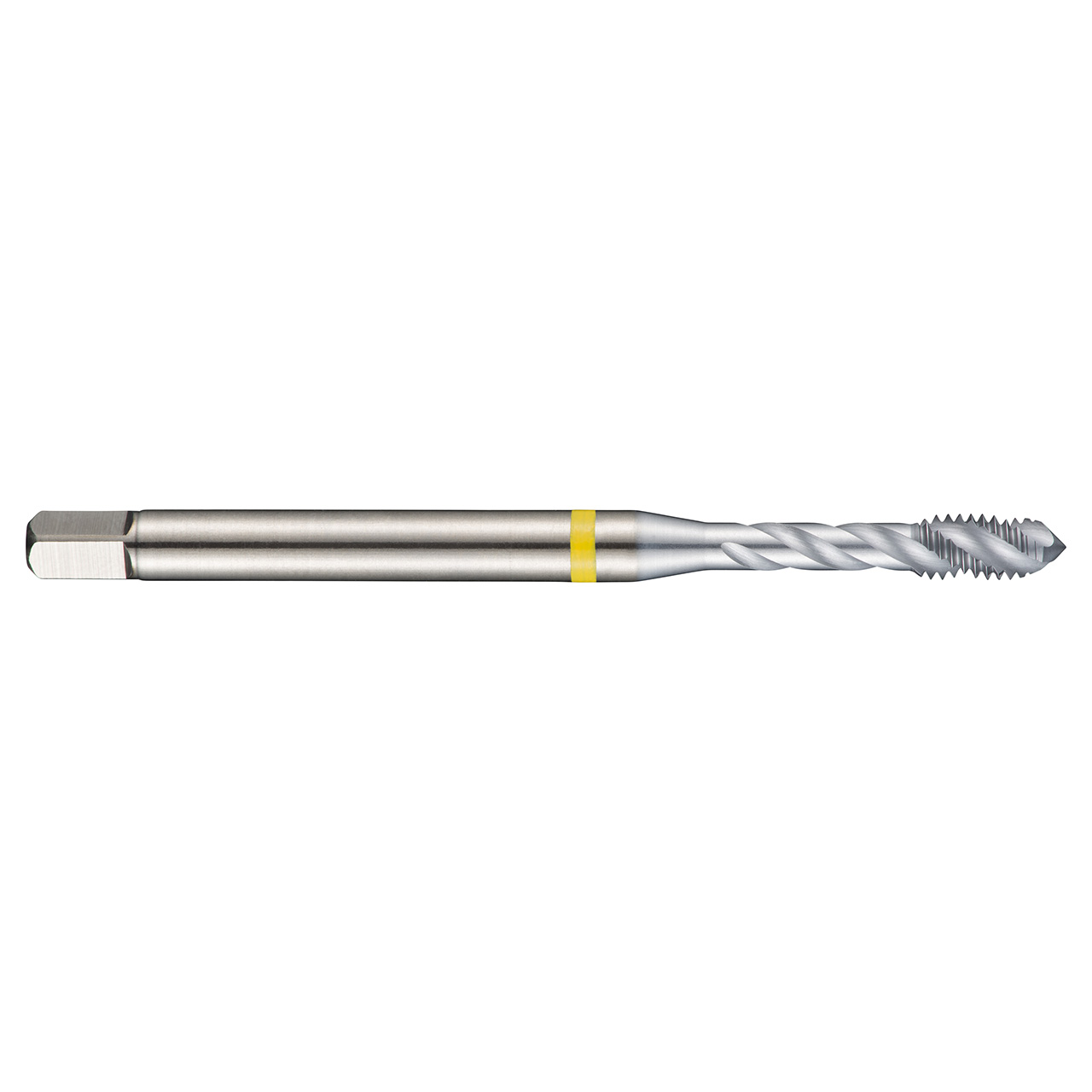

Dormer E298M5 | 0.2362" Diameter x 2.7559" OAL 3 Flute Flash Chrome Coated Spiral Flute Tap

$26.10
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026501
UPC:
7320760663042
Weight:
0.48 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M5 with 0.80mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with flash chorme surface finish and 40° helix angle for 2xD blind hole threading in free machining and plain carbon steel and copper or copper alloys.


Product Specifications
Connection Diameter (Inch)0.2362"
Overall Length (Inch)2.7559"
Clamping Width (mm)4.9mm
No of Flutes3
Flute Helix Angle40
Usable Length (mm)25mm
Thread Pitch (mm)0.8mm
Clamping Length8
Thread Diameter Size5
Threading Length (mm)8mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingFlash Chrome
Tap Chamfer StyleC 2-3
Thread FormM-Metric coarse
