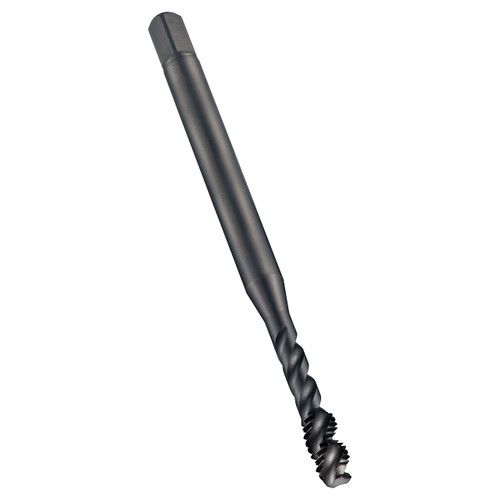

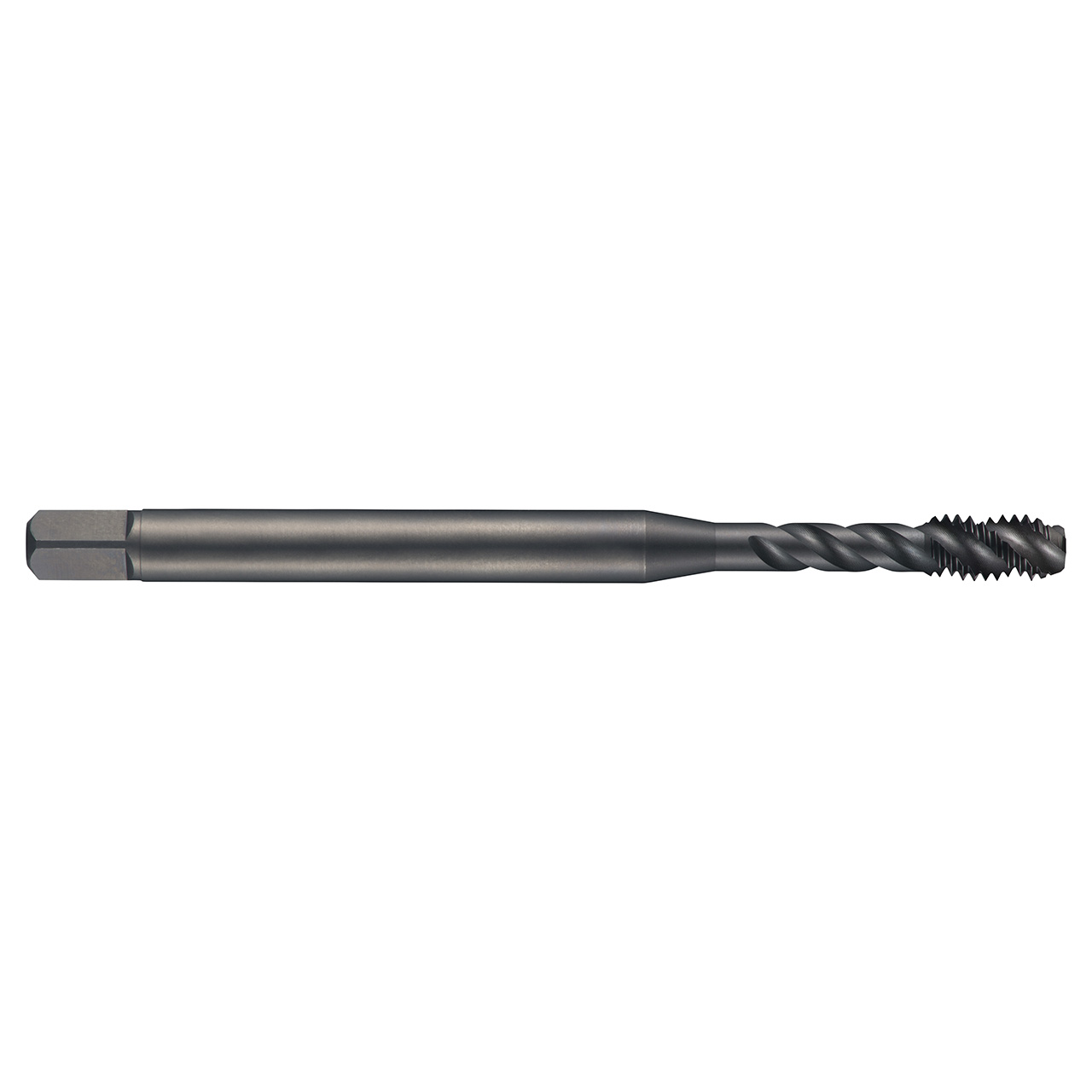

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M36 with 4.00mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 28.0mm shank and 22.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications.
Product Specifications
| Connection Diameter (Inch) | 1.1024" |
| Overall Length (Inch) | 7.874" |
| Clamping Width (mm) | 22mm |
| No of Flutes | 4 |
| Flute Helix Angle | 45 |
| Thread Pitch (mm) | 4mm |
| Clamping Length | 25 |
| Thread Diameter Size | 36 |
| Threading Length (mm) | 40mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black |
| Thread Form | M-Metric coarse |
