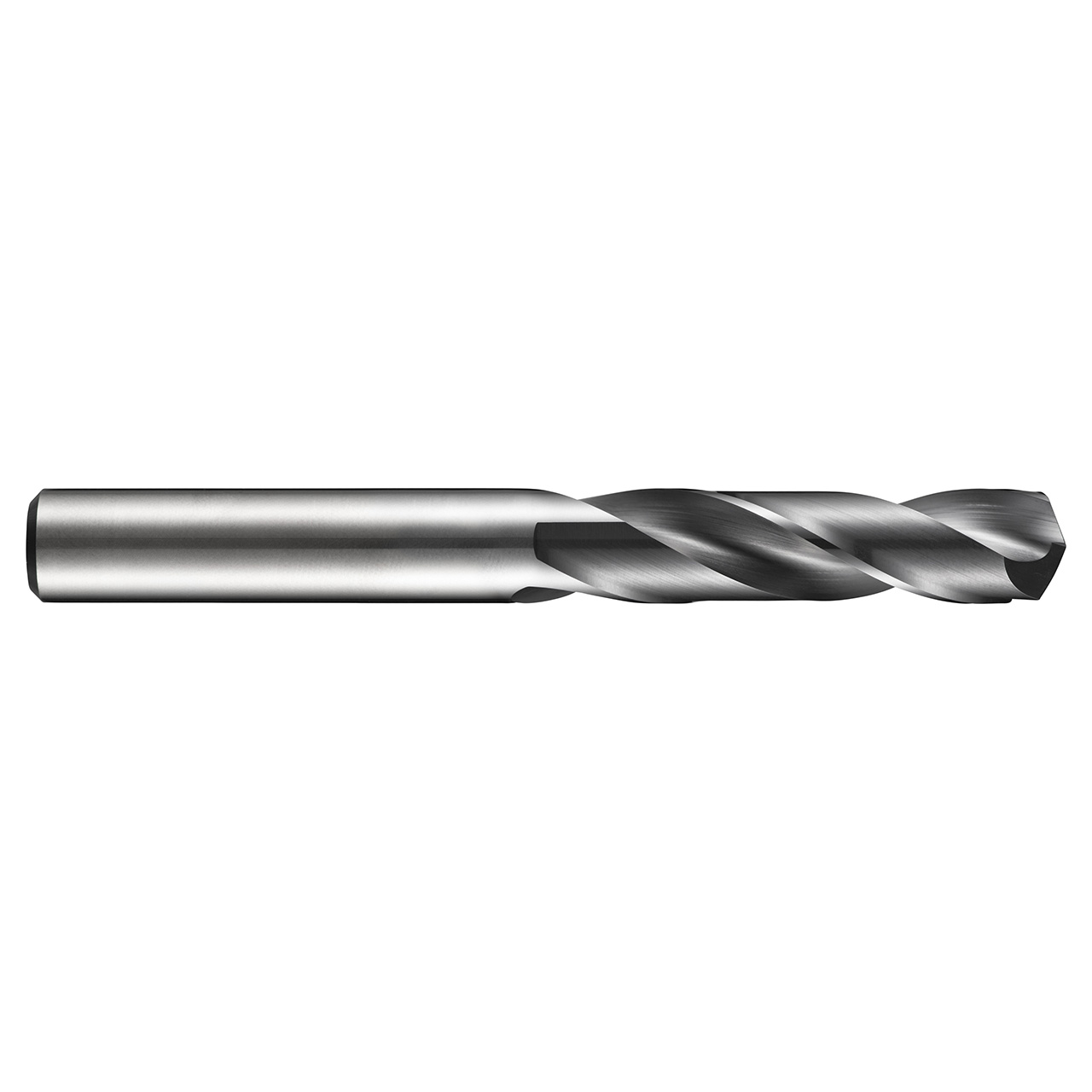

Dormer R4577.9 | 0.311" Diameter x 3.1102" OAL TiAlN Coated Screw Machine Length Drill Bit

$109.25
Brand:
Dormer
Drill Bit Size (Inch):
5/16"
Drill Bit Size (Decimal Inch):
0.3110"
Drill Bit Size (mm):
7.9mm
Drill Point Angle:
140°
Flute Length (Inch):
1-39/64"
Flute Length (Decimal Inch):
1.6100"
Flute Length (mm):
41mm
Overall Length (Inch):
3-7/64"
Overall Length (Decimal Inch):
3.1102"
Overall Length (mm):
79mm
Material:
HM
Finish/Coating:
TiAlN
Cutting Direction:
Right Hand
SKU:
10110372
UPC:
7320760134900
Weight:
1.69 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

R457 Force-X drills, for holes up to three times the diameter of the drill, are capable of drilling holes of very high quality and accuracy (H9 hole tolerance), even at high speeds and feeds. They are manufactured from premium carbide so can be used to drill many materials including stainless steels, aluminium and steels, and have a titanium aluminium nitride coating for longer tool life and improved performance when drilling harder materials. Self-centering is achieved, thanks to the 140°, 4-facet split point, which also means less push force is needed to drill the hole. R457 Force-X drills have a special CTW flute design (Continuously Thinned Web) plus coolant feed, which give the drills increased strength and allows them to operate at higher cutting speeds and feeds.


Product Specifications
EDP Number0134900
Usable Length3
Connection Diameter (Inch)0.315"
Cutting Diameter (Inch)0.311"
Overall Length (Inch)3.1102"
Shank Length (mm)36mm
Point Angle140
Material CodeHM
Drill LengthShort
Cutting DirectionRight Hand
CoatingTiAlN
Surface ColorBlack-Deep Purple
