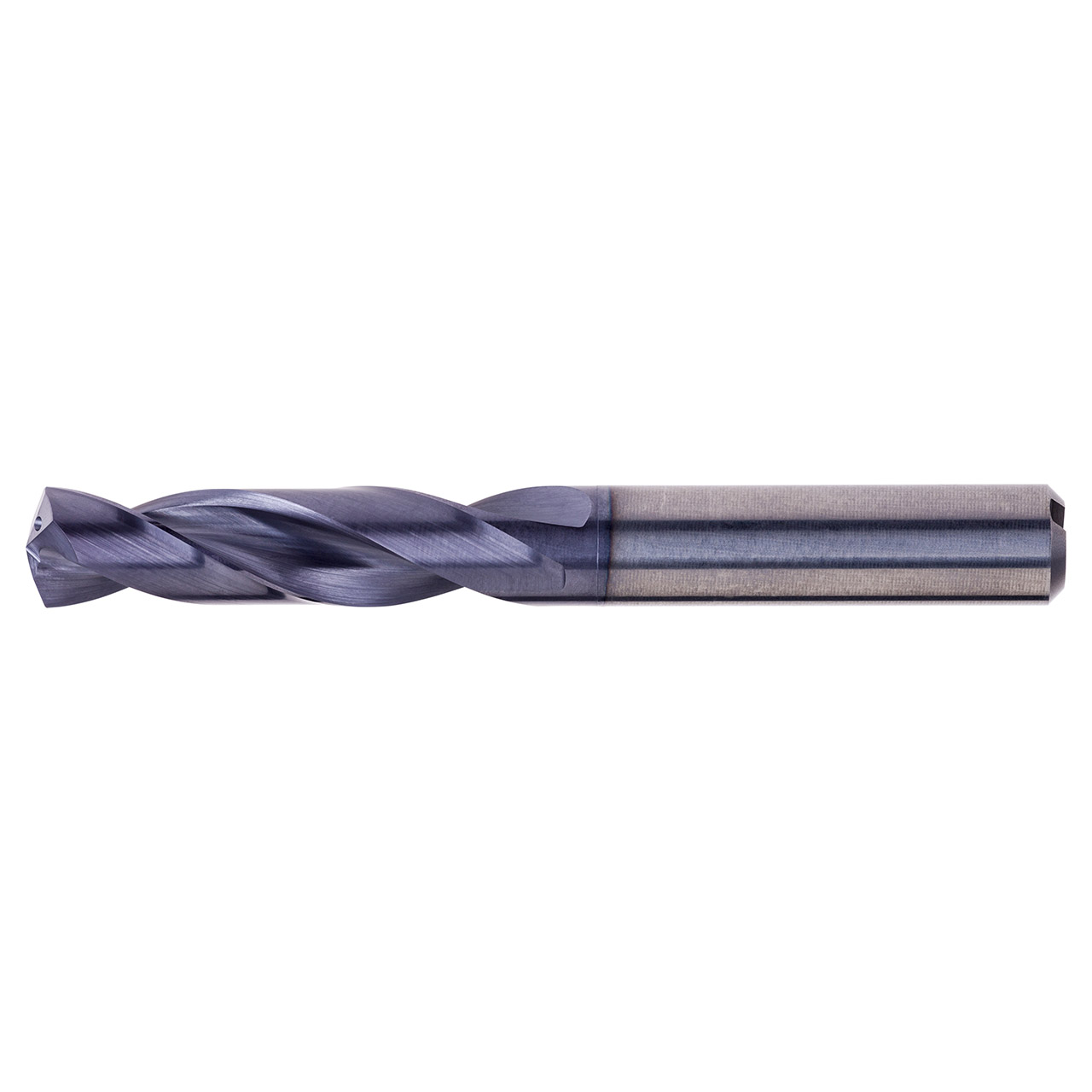

Dormer R4671/8 | 0.125" Diameter x 2.4409" OAL TiAlN Coated Screw Machine Length Drill Bit

$93.20
Brand:
Dormer
Drill Bit Size (Inch):
1/8"
Drill Bit Size (Decimal Inch):
0.1250"
Drill Bit Size (mm):
3.18mm
Drill Point Angle:
140°
Flute Length (Inch):
25/32"
Flute Length (Decimal Inch):
0.7900"
Flute Length (mm):
20mm
Overall Length (Inch):
2-7/16"
Overall Length (Decimal Inch):
2.4409"
Overall Length (mm):
62mm
Material:
HM
Finish/Coating:
TiAlN
Cutting Direction:
Right Hand
SKU:
10112881
UPC:
7320760836095
Weight:
0.21 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

R467 Force-M solid carbide drills from Dormer have a special CTW flute design (Continuously Thinned Web) giving the drills extra strength. Together with the coolant feed, this allows the drills to operate at higher cutting speeds and feeds whilst still capable of producing a high quality and accurate hole (H9 hole tolerance). Manufactured from premium carbide, the drills are specifically designed for drilling stainless steels and other heat resistant super alloys, whilst the titanium aluminium nitride coating ensures great performance when drilling harder materials and extends the tool life. As a final touch, R467 carbide drills have a 140°, 4-facet split point which helps with self-centering and reduces the force needed to drill the workpiece.


Product Specifications
Usable Length3
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.125"
Overall Length (Inch)2.4409"
Shank Length (mm)36mm
Point Angle140
Material CodeHM
Drill LengthShort
Cutting DirectionRight Hand
CoatingTiAlN
Surface ColorBlack-Deep Purple
