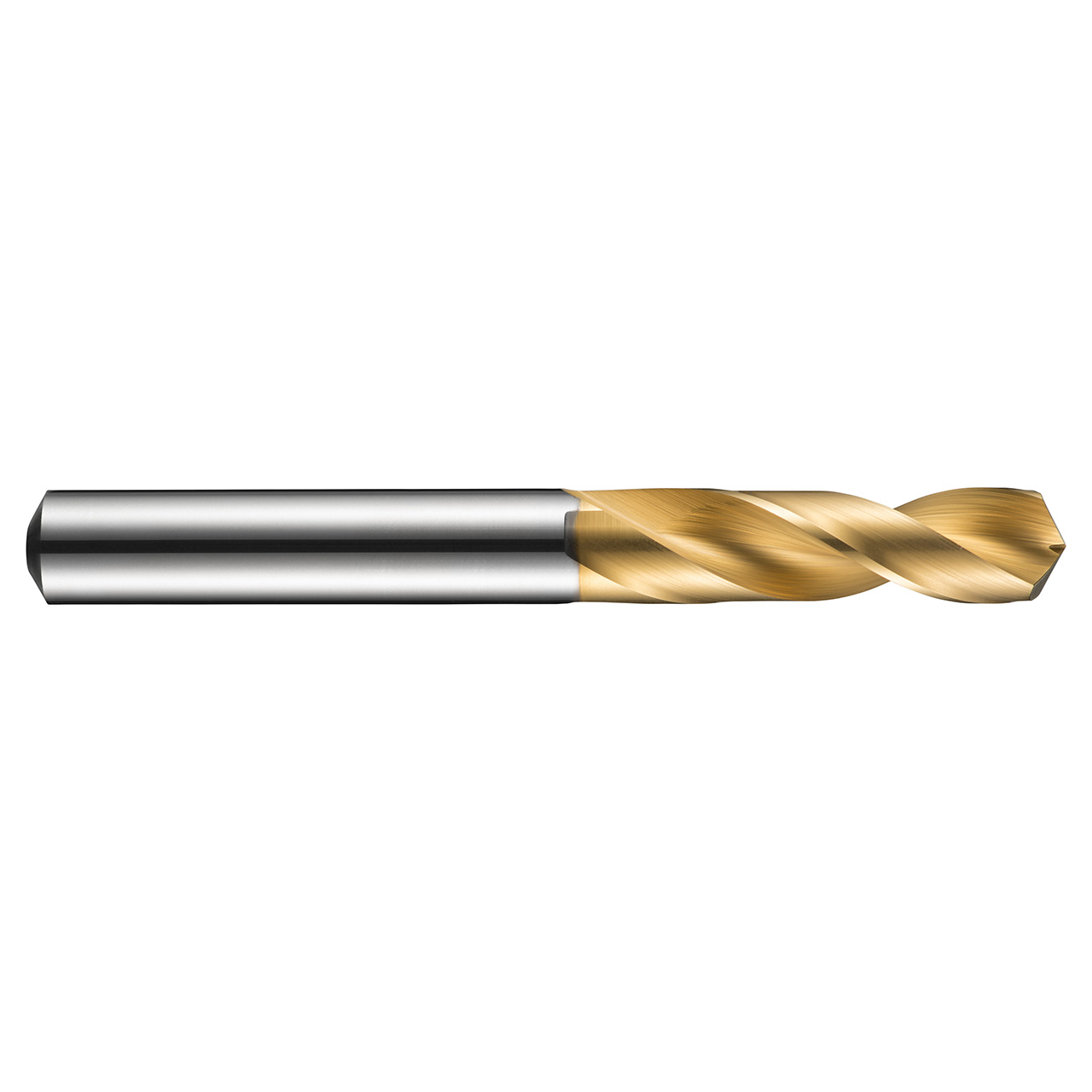

Dormer R5205.4 | 0.2126" Diameter x 2.5984" OAL TiN Coated Stub Drill

$61.56
Brand:
Dormer
Drill Bit Size (Inch):
7/32"
Drill Bit Size (Decimal Inch):
0.2126"
Drill Bit Size (mm):
5.4mm
Drill Point Angle:
130°
Overall Length (Inch):
2-19/32"
Overall Length (Decimal Inch):
2.5984"
Overall Length (mm):
66mm
Material:
HM
Finish/Coating:
TiN
SKU:
10110272
UPC:
7320760116302
Weight:
0.61 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Dormer's R520 drills are manufactured from premium carbide and are suitable for drilling a variety of materials including steels, aluminium and cast iron. The drills are capable of producing high quality and accurate holes (H8 hole tolerance), even at high speeds and feeds, which are made possible thanks to the convex cutting edges helping break chips for easy removal. With a 130° point to help with self-centering and reduce the force needed to drill into the workpiece, R520 solid carbide drills also have a titanium nitride coating which extends the life of the drill and improves performance when drilling harder materials.


Product Specifications
EDP Number0116302
Usable Length2.5
Connection Diameter (Inch)0.2126"
Cutting Diameter (Inch)0.2126"
Overall Length (Inch)2.5984"
Point Angle130
Material CodeHM
Drill LengthStub
Cutting DirectionRight Hand
CoatingTiN
Surface ColorGold
