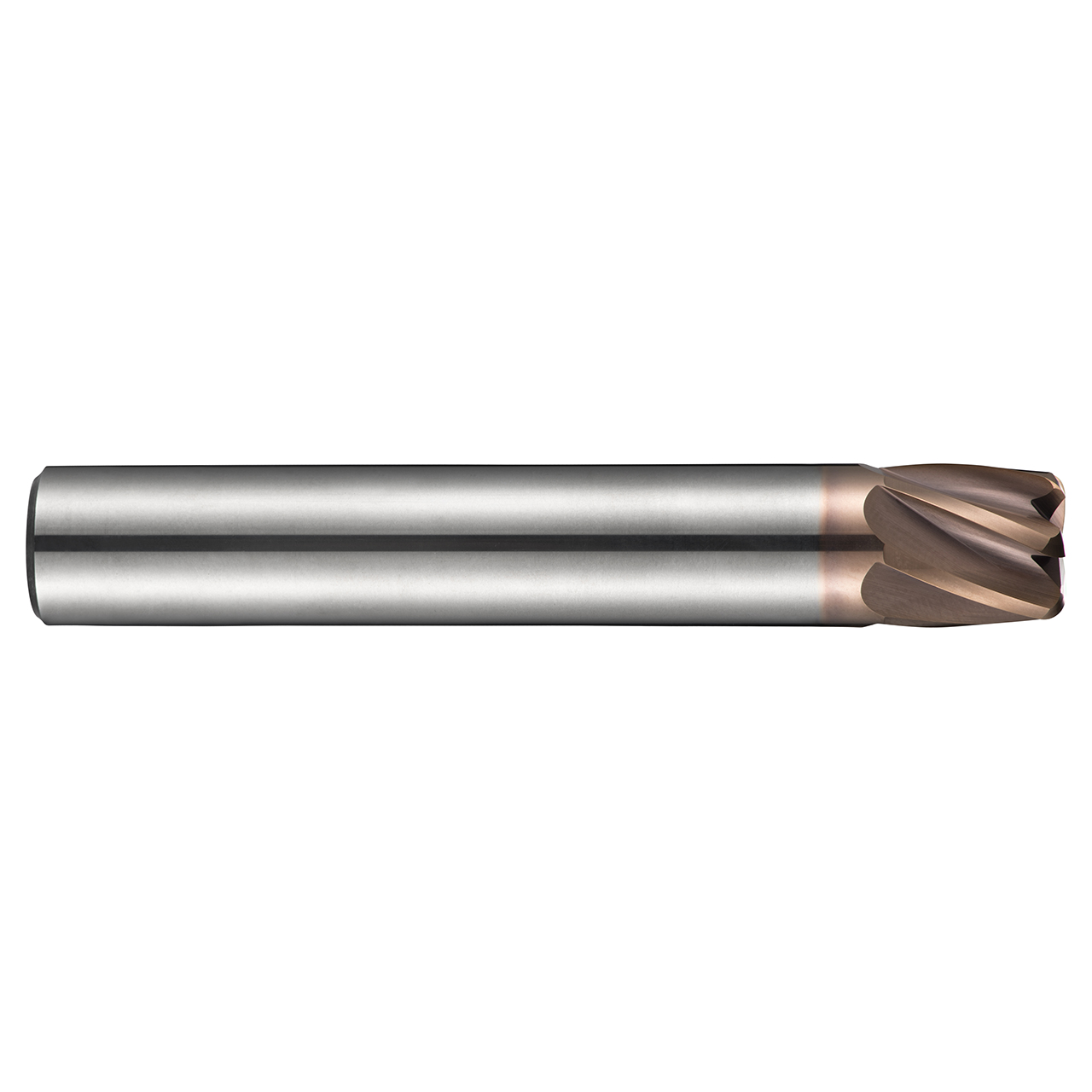

Dormer's S536 carbide milling cutters are manufactured from premium carbide so you get great performance and longer tool life, whilst the coating of titanium silicon nitride further increases the life of the tool and also improves performance when milling difficult to machine materials. The tools have a short, multi-flute design with corner radius which means you get high rigidity for finishing complex surfaces. S536 corner radius end mills are specifically for high speed machining in hardened tool steels up to 63HRC and have a 25 degree helix for high performance contouring on CNC machines.
Max Depth of Cut (mm) | 6mm |
Connection Diameter (Inch) | 0.2362" |
Cutting Diameter (Inch) | 0.2362" |
Overall Length (Inch) | 2.3622" |
Material Code | HM |
No of Flute | 4 |
Flute Helix Angle | 25 |
Corner Radius (mm) | 1mm |
Coating | TiSiN |
Surface Color | Rose Gold |
