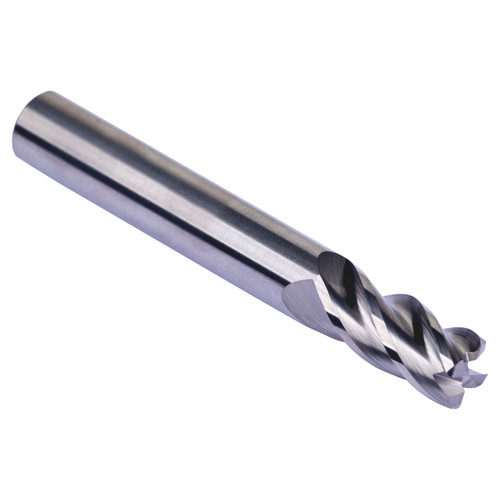

Dormer S6628.0XR0.5 | 0.315" Diameter x 2.5197" OAL 4 Flute Bright Coated Corner Radius End Mill

$64.20
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25211954
Weight:
1.63 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

With a corner radius to reduce chipping and improve tool life, S622 milling cutters from Dormer have a positive geometry giving smooth cutting for high performance milling of non-ferrous materials. They are capable of slotting, ramping, plunging and contouring, and will give clean and accurate results thanks to the bright finish which prevents workpiece material from sticking to the cutting edges of the tool and also reduces friction. S662 cutters come with a differential pitch to reduce chatter and vibrations for improved surface finish and tool life.


Product Specifications
Max Depth of Cut (mm)20mm
Connection Diameter (Inch)0.315"
Cutting Diameter (Inch)0.315"
Overall Length (Inch)2.5197"
Material CodeHM
Radial Rake Angle10
No of Flute4
Flute Helix Angle40
Corner Radius (mm)0.5mm
CoatingBright
Surface ColorBright Silver
