Features:

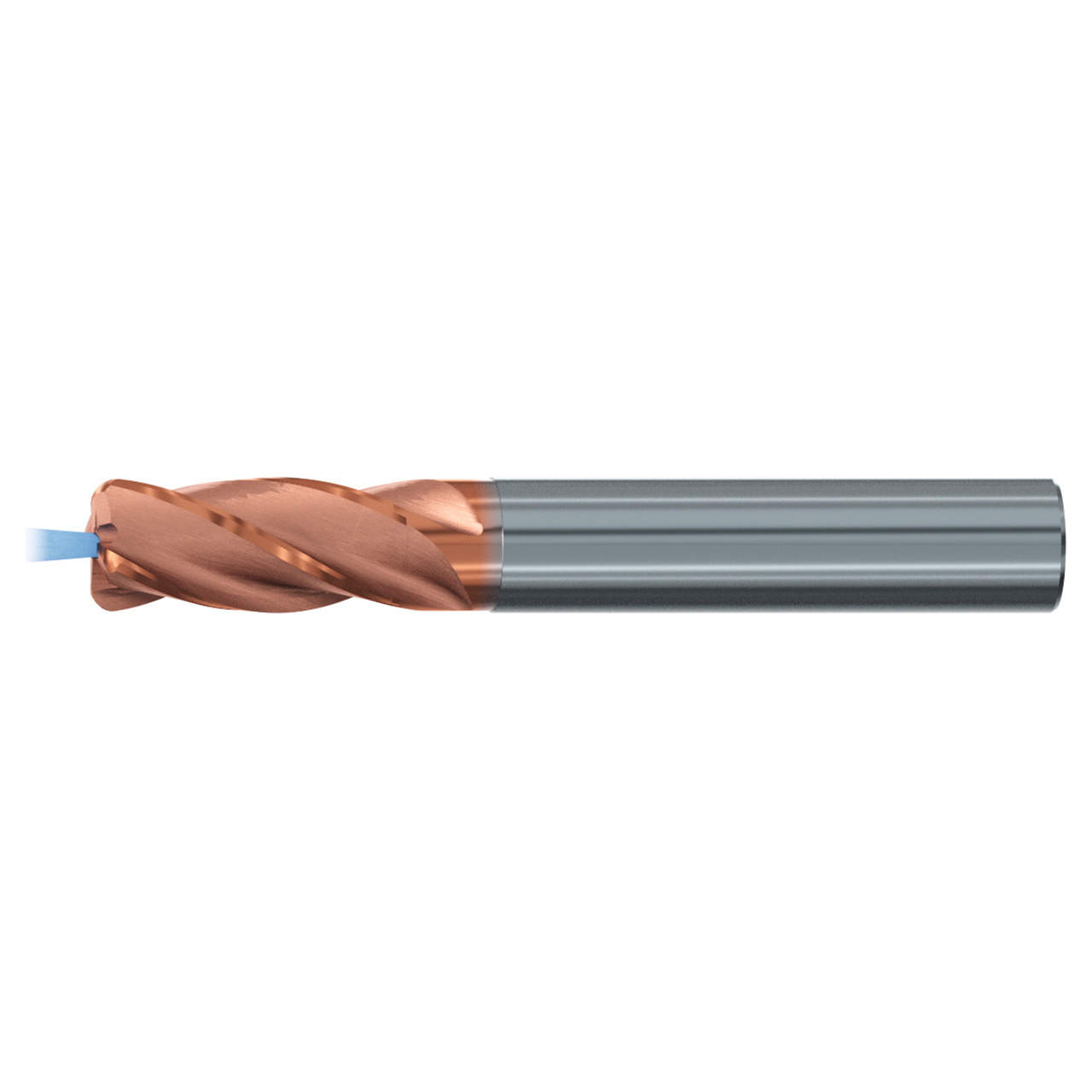

- TOP-Cut carbide end mill in long design for roughing and finishing in almost all materials
- Unique geometry enables low-vibration machining and universal use in almost all materials and milling processes
- TIALN coated for additional heat and wear resistance
- Axial coolant hole for enhanced chip evacuation
Product Specifications
| Manufacturer Part Number | 2698AZ.016040 |
| Cutting Diameter (Decimal Inch) | 0.630" |
| Cutting Diameter (mm) | 16.00mm |
| Corner Radius (mm) | 4.00mm |
| Overall Length (mm) | 92.00mm |
| Flute Length (mm) | 32.00mm |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Group Length | Standard Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 35-38 Degree |
| Cutting Edge Material | Carbide |
| Coating | TIALN |
| Tool Type | Corner Radius |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Corner Radius |
| Application | Finishing |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Mill Diameter (Inch):
5/8"
Mill Diameter (Decimal Inch):
0.6299"
Mill Diameter (mm):
16.00mm
Number of Flutes:
4
Corner Radius (Inch):
5/32"
Corner Radius (Decimal Inch):
0.1574"
Corner Radius (mm):
4.00mm
Overall Length (Inch):
3-5/8"
Overall Length (Decimal Inch):
3.6220"
Overall Length (mm):
92.00mm
Finish/Coating:
TiAlN
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (mm):
16.00mm
Application:
Finishing
interval quantity:
1
